DocWen Assistant

English · 简体中文 · 繁體中文 · Deutsch · Français · Русский · Português · 日本語 · Español · 한국어 · Tiếng Việt

DocWen Assistant connects Obsidian to the local DocWen desktop application for conversion, proofreading, numbering, and file opening.

DocWen is required. Install a compatible DocWen 0.9.x version from Microsoft Store, or fully extract the portable package from DocWen Releases.

Screenshots

These screenshots show the packaged plugin running in desktop Obsidian with local DocWen.

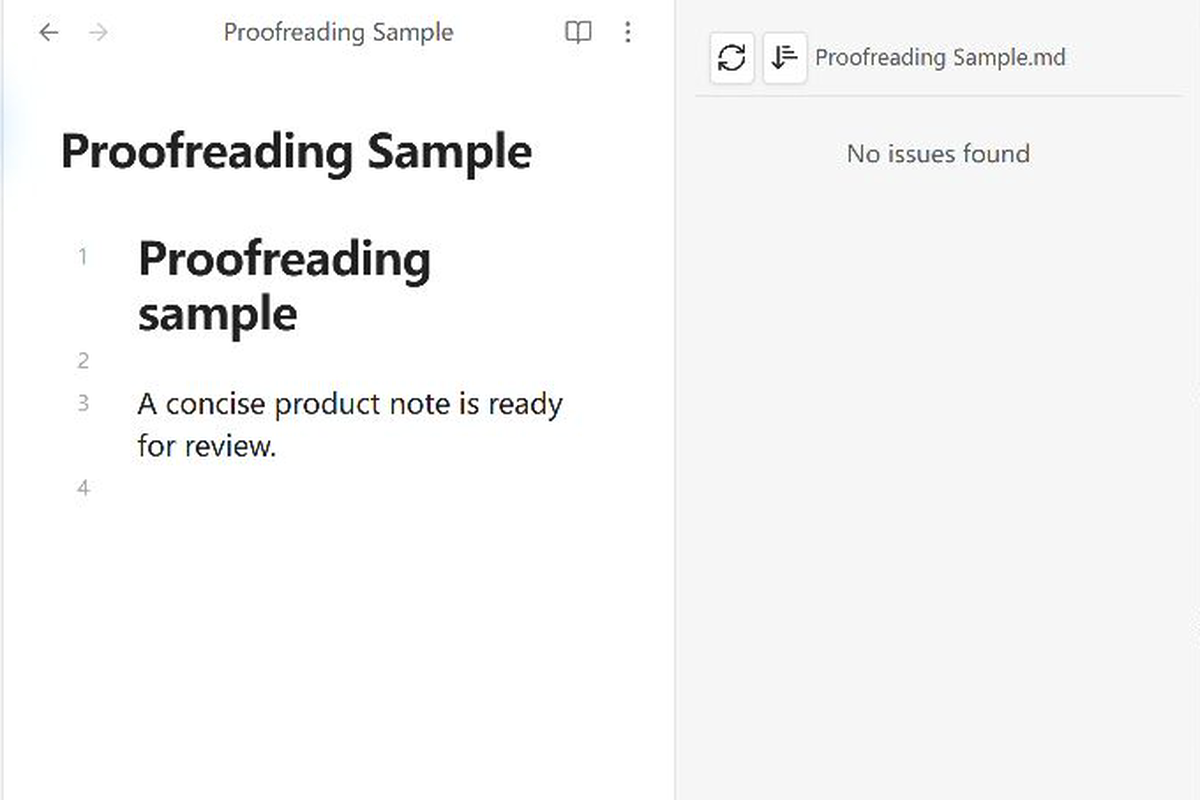

Proofreading sidebar

Review issues by line or rule and jump back to the matching source range without rewriting the note.

DocWen proofreading sidebar

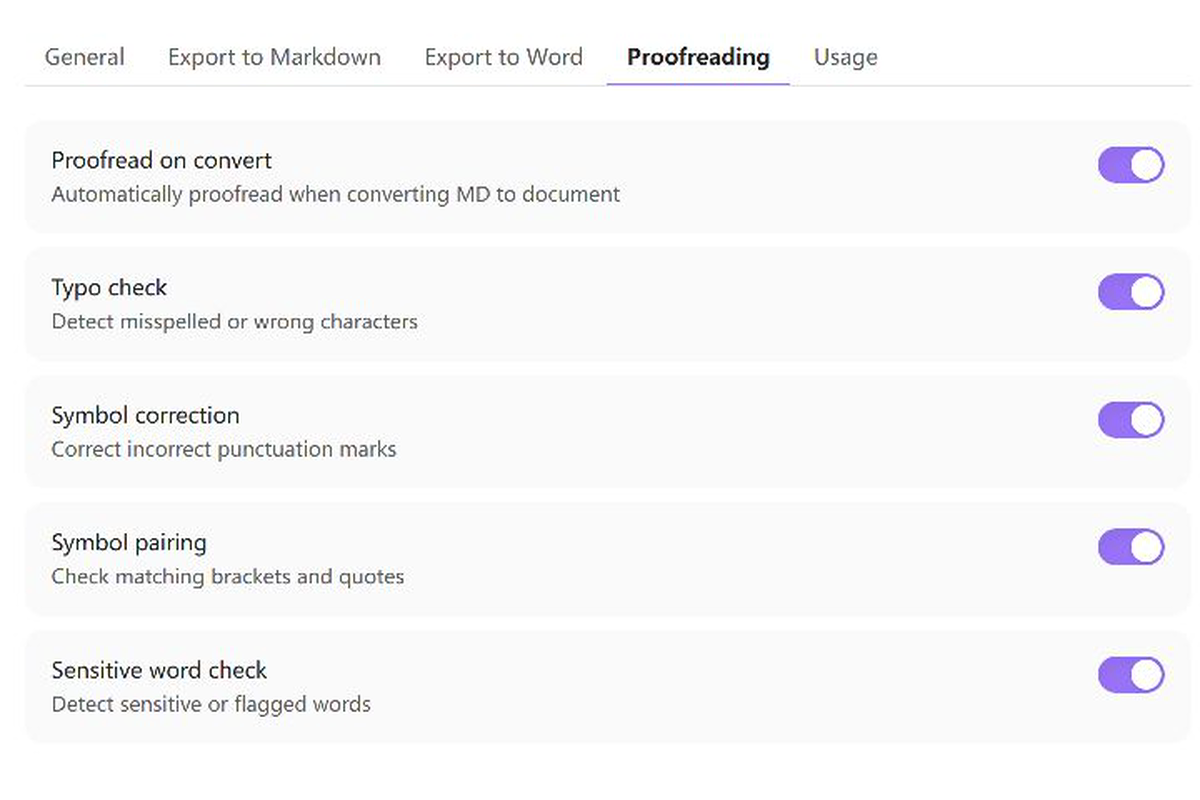

Top-tab settings and DocWen connection

Use the five top tabs to connect automatically to the Microsoft Store installation, configure a portable installation when needed, and tune conversion and proofreading.

DocWen Assistant top-tab settings

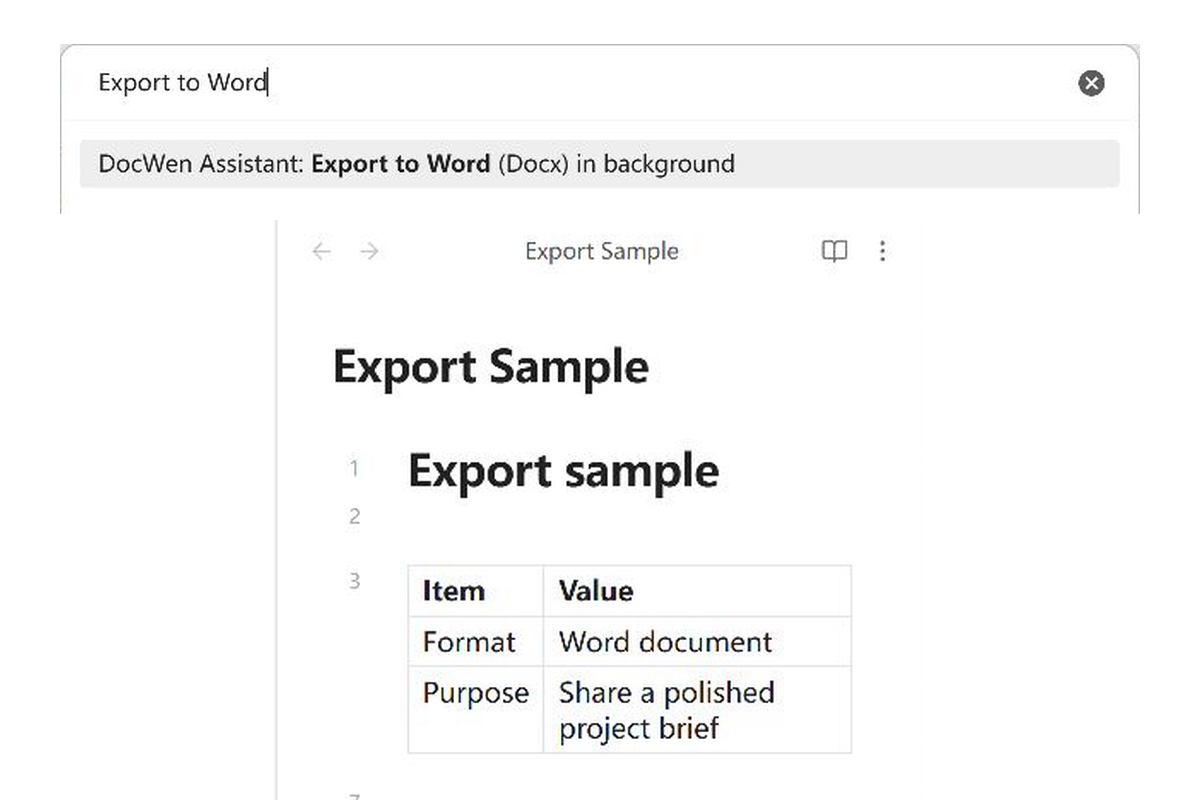

Capability-selected export

Choose an available conversion route and an explicit output location while keeping the source note unchanged.

DocWen Assistant capability-selected export

Features

  • Open the active Obsidian file in DocWen or activate the DocWen window.
  • Export to Word, Excel, or Markdown with an explicit output location.
  • Add or remove Markdown heading numbering.
  • Proofread Markdown in an Obsidian sidebar.
  • Check the local DocWen connection.
  • Use file-explorer context menu actions.
  • Use localized UI in 11 languages.

Requirements and compatibility

  • Windows and Obsidian 1.12.7 or later. The plugin is desktop-only.
  • A compatible DocWen 0.9.x installation from Microsoft Store, or a fully extracted portable Windows package. The plugin does not download DocWen automatically.
  • The plugin requires docwen.machine.v1 and docwen.artifact_bundle.v2; incompatible DocWen versions fail validation instead of using a fallback protocol.

Automatic detection is the default and uses the registered docwen.exe application execution alias, so Microsoft Store updates do not invalidate a saved package path. Portable ZIP users can switch to manual installation and select the extracted DocWen folder, DocWen.exe, or DocWenCLI.exe. The plugin never scans WindowsApps, recursively searches for executables, exchanges command files, downloads software, or falls back to an older protocol.

Installation

Install DocWen and the plugin

  1. Install a compatible DocWen 0.9.x version from Microsoft Store. Alternatively, download DocWen-windows-x64.zip from DocWen Releases and extract it completely.
  2. Install DocWen Assistant from Obsidian Community Plugins. For manual installation, download docwen-assistant-x.y.z.zip from DocWen Assistant Releases, then copy main.js, manifest.json, and styles.css into <Vault>/.obsidian/plugins/docwen-assistant/.
  3. Reload Community plugins and enable DocWen Assistant.
  4. Automatic detection needs no file selection. If you use the portable ZIP, open Settings → DocWen Assistant → General, choose Manual installation, and select the extracted DocWen folder.

Installation safety

The release package contains only main.js, manifest.json, and styles.css; it never contains, replaces, or deletes data.json. Keep data.json and replace only the three runtime files. The fixed manifest.id is docwen-assistant, which fixes the installed-plugin identity and settings-file location. Delete data.json only when you explicitly want to reset all plugin preferences.

Usage

Use the ribbon icon, file-explorer DocWen submenu, or Command Palette:

  • Launch DocWen / Launch DocWen with current file
  • Export to Word (Docx) in background
  • Export to Excel (XLSX) in background
  • Export to Markdown (MD) in background
  • Add numbering to Markdown headings
  • Remove numbering from Markdown headings
  • Proofread current Markdown file
  • Check DocWen connection

Background export always asks for an output file. Existing output is overwritten only after the native save dialog confirms the target.

Resolved Markdown-to-DOCX export receives one adjacent <document>.docwen file from DocWen. The Assistant validates and publishes that file atomically with the DOCX; if the required file is missing, damaged, or ambiguously related, neither output is published. Keep the two files together. During DOCX-to-Markdown conversion, a missing or mismatched companion disables only exact-source restoration, so DocWen can still return authenticated canonical Markdown semantics.

With a compatible Number Suite version enabled, Word export preserves its validated virtual heading and caption numbers plus same-note references without adding those numbers to the Markdown note.

Settings

  • Obsidian 1.12.7 or later uses five horizontally scrollable top tabs: General, Export to Markdown, Export to Word, Proofreading, and Usage.
  • Plugin language defaults to Follow Obsidian and can be overridden with any of DocWen Assistant's 11 languages. Resource discovery receives the same resolved locale.
  • Connection method defaults to Detect automatically, which supports Microsoft Store. Manual installation reveals the portable-folder picker. The status row checks the product identity, version, protocol, and health without exposing package paths.
  • Tabs support arrow keys (including RTL direction), Home/End, visible keyboard focus, 20 px UI text, and coarse-pointer targets. Runtime numbering schemes are queried only when their tab is rendered.

Limitations

  • DocWen Assistant is Windows desktop-only and requires a compatible local DocWen installation.
  • Automatic mode uses only the fixed registered docwen.exe alias. Manual mode accepts only the selected DocWen folder, DocWen.exe, or DocWenCLI.exe; neither mode searches arbitrary folders.
  • Background export requires an explicit output file, and proofreading does not rewrite the source note.
  • A command is rejected when the CLI response, source snapshot, editor state, or target cannot be verified safely.

Privacy and security

The plugin takes a snapshot of the current Obsidian editor buffer (including unsaved text) or Vault file and gives DocWen only isolated temporary inputs. It intentionally accesses files outside the Vault only to start the registered DocWen execution alias or the manually selected portable executable, manage isolated temporary inputs and validated artifacts, and write to an output path explicitly chosen by the user; this access is required for local conversion and export. It never opens or stores the versioned Microsoft Store package path. For Markdown-to-DOCX, Obsidian resolves image embeds explicitly present in that note, including cross-folder short Wiki links and filenames with spaces; the plugin authenticates and embeds those bytes in a neutral request. It never scans the Vault for matching filenames. Conversion commits the validated preferred output to the user-confirmed target and any validated related resources beside it under safe names. Proofreading is read-only. Numbering is produced in an isolated output, then committed once through the current Obsidian editor or Vault API only if the source snapshot still matches. The plugin does not upload documents or enumerate the Vault for DocWen operations.

The CLI boundary uses JSON-RPC 2.0 with canonical Content-Length framing. Every task uses integrity-pinned input handles and a request-owned staging directory; every returned Artifact Bundle is graph-, path-, size-, and SHA-256-validated before the plugin commits outputs atomically. Calls have timeouts, task cancellation, output limits, and child-process cleanup.

See Machine integration contract for the exact methods, capabilities, and Bundle rules.

Development

Use Node.js 24.19.0 and npm 11.17.0.

npm ci
npm run check
npm run release

Runtime source is under src/; the DocWen boundary is under src/docwen/; tests are under tests/. Generated dist/ and release/ files are not source.

Stable documents: Product requirements · UX specification · Architecture · Testing strategy · Release procedure

Repository governance: Changelog · Contributing · Security

Support

  • Use General for workflow ideas and general feedback.
  • Use Q&A for usage and configuration questions.
  • Use the structured DocWen Assistant issue forms for reproducible Obsidian integration bugs and concrete feature requests.
  • DocWen core issues: conversion, OCR, proofreading, or CLI behavior outside Obsidian.
  • Report vulnerabilities privately through the repository's security policy.

Remove private document content, file and Vault paths, CLI logs, executable locations, and credentials before posting publicly.

License

MIT © ZhengYX
