DomBusEVSE EVSE module to make a Smart Wallbox EV Charging Station

Home Assistant configuration files for DomBusEVSE module used to make a DIY smart wallbox charging station

More information in the web pages:

• DomBusEVSE page
• DomBusEVSE with Home Assistant
• Creasol store

DomBusEVSE

Youtube video showing DomBusEVSE working with Domoticz

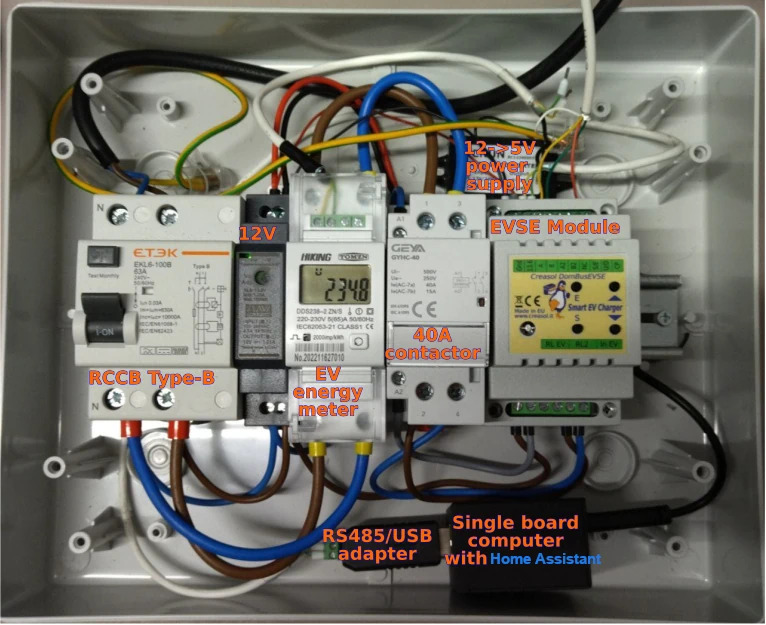

Home made wallbox using DomBusEVSE and Home Assistant

Configuration files

DO NOT USE THESE CONFIGURATION FILES: PLEASE CHECK AT https://github.com/CreasolTech/DomBus_ha

• configuration.yaml with changes to include dombus1.yaml with all entities for DomBus modules connected to the same bus, and some helpers.
• dombus1.yaml contains entities for all DomBus modules connected to this bus
• automations.yaml contains some automations to configure the module

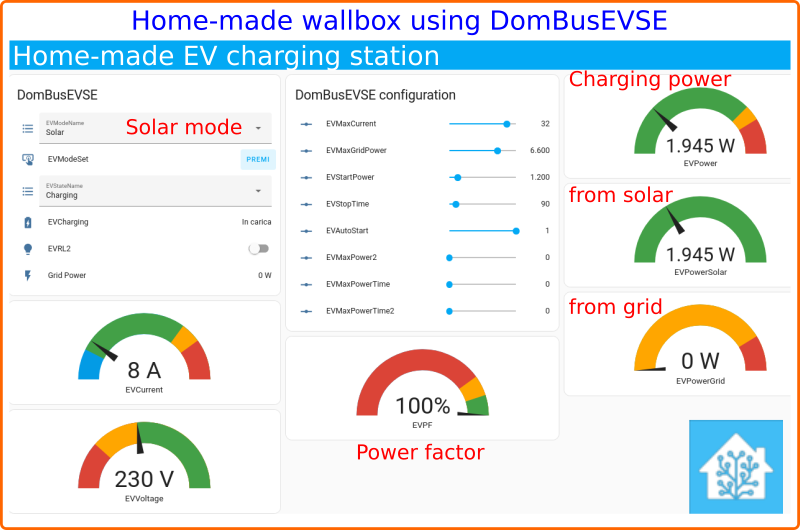

• dashboard_wallbox.yaml contains a dashboard with main controls for the DomBusEVSE module

Creasol DomBus modules

Our industrial and home automation modules are designed to be

• very low power (around 10mW with relays OFF)
• reliable (no disconnections)
• bus connected (no radiofrequency interference, no battery to replace).

Modules are available in two version:

1. with DomBus proprietary protocol, working with Domoticz only
2. with Modbus standard protocol, working with Home Assistant, OpenHAB, Node-RED

Store website - Information website

DomBusEVSE - EVSE module to build a Smart Wallbox / EV charging station

Complete solution to make a Smart EVSE, charging the electric vehicle using only energy from renewable source (photovoltaic, wind, ...), or adding 25-50-75-100% of available power from the grid.

• Single-phase and three-phases, up to 36A (8kW or 22kW)
• Needs external contactor, RCCB (protection) and EV cable
• Optional power meter to measure charging power, energy, voltage and power factor
• Optional power meter to measure the power usage from the grid (not needed if already exists)
• Two max grid power thresholds can be programmed: for example, in Italy who have 6kW contractual power can drain from the grid Max (6* 1.27)=7.6kW for max 90 minutes followed by (6* 1.1)=6.6kW for another 90 minutes. The module can use ALL available power when programmed to charge at 100%.
• Works without the domotic controller (stand-alone mode), and can also work with charging current set by the domotic controller (managed mode)

DomBusTH - Compact board to be placed on a blank cover, with temperature and humidity sensor and RGW LEDs

Compact board, 32x17mm, to be installed on blank cover with a 4mm hole in the middle, to exchange air for the relative humidity sensor. It can be installed in every room to monitor temperature and humidity, check alarm sensors, control blind motor UP/DOWN, send notifications (using red and green leds) and activate white led in case of power outage.

Includes:

• temperature and relative humidity sensor
• red, green and white LEDs
• 4 I/Os configurable as analog or digital inputs, pushbuttons, counters (water, gas, S0 energy, ...), NTC temperature and ultrasonic distance sensors
• 2 ports are configured by default as open-drain output and can drive up to 200mA led strip (with dimming function) or can be connected to the external module DomRelay2 to control 2 relays; they can also be configured as analog/digital inputs, pushbuttons and distance sensors.

DomBus12 - Compact domotic module with 9 I/Os

Very compact, versatile and cost-effective module with 9 ports. Each port can be configured by software as:

• analog/digital inputs
• pushbutton and UP/DOWN pushbutton
• counters (water, gas, S0 energy, ...)
• NTC temperature and ultrasonic distance sensors
• 2 ports are configured by default as open-drain output and can drive up to 200mA led strip (with dimming function) or can be connected to the external module DomRelay2 to control 2 relays.

DomBus23 - Domotic module with many functions

Versatile module designed to control gate or garage door.

• 2x relays SPST 5A
• 1x 10A 30V mosfet (led stripe dimming)
• 2x 0-10V analog output: each one can be configured as open-drain output to control external relay
• 2x I/O lines, configurable as analog/digital inputs, temperature/distance sensor, counter, ...
• 2x low voltage AC/DC opto-isolated inputs, 9-40V
• 1x 230V AC opto-isolated input

DomBus31 - Domotic module with 8 relays

DIN rail low profile module, with 8 relays and very low power consumption:

• 6x relays SPST 5A
• 2x relays STDT 10A
• Only 10mW power consumption with all relays OFF
• Only 500mW power consumption with all 8 relays ON !!

DomBus32 - Domotic module with 3 relays

Versatile module with 230V inputs and outputs, and 5 low voltage I/Os.

• 3x relays SPST 5A
• 3x 115/230Vac optoisolated inputs
• Single common for relays and AC inputs
• 5x general purpose I/O, each one configurable as analog/digital inputs, pushbutton, counter, temperature and distance sensor.

DomBus33 - Module to domotize a light system using step relays

Module designed to control 3 lights already existing and actually controlled by 230V pushbuttons and step-by-step relays. In this way each light can be activated by existing pushbuttons, and by the domotic controller.

• 3x relays SPST 5A
• 3x 115/230Vac optoisolated inputs
• Single common for relays and AC inputs
• 5x general purpose I/O, each one configurable as analog/digital inputs, pushbutton, counter, temperature and distance sensor.

Each relay can toggle the existing step-relay, switching the light On/Off. The optoisolator monitors the light status. The 5 I/Os can be connected to pushbuttons to activate or deactivate one or all lights.

DomBus36 - Domotic module with 12 relays

DIN rail module, low profile, with 12 relays outputs and very low power consumption.

• 12x relays SPST 5A
• Relays are grouped in 3 blocks, with a single common per block, for easier wiring
• Only 12mW power consumption with all relays OFF
• Only 750mW power consumption with all 12 relays ON !!

DomBus37 - 12 inputs, 3 115/230Vac inputs, 3 relay outputs

Module designed to be connected to alarm sensors (magnetc contact sensors, PIRs, tampers): it's able to monitor mains power supply (power outage / blackout) and also have 3 relays outputs.

• 12x low voltage inputs (analog/digital inputs, buttons, alarm sensors, counters, temperature and distance sensors, ...)
• 3x 115/230Vac optoisolated inputs
• 2x relays SPST 5A
• 1x relay SPST 10A
• In12 port can be used to send power supply to an external siren, monitoring current consumption

DomRelay2 - 2x relays board

Simple module with 2 relays, to be used with DomBus modules or other electronic boards with open-collector or open-drain outputs

• 2x 5A 12V SPST relays (Normally Open contact)
• Overvoltage protection (for inductive loads, like motors)
• Overcurrent protection (for capacitive laods, like AC/DC power supply, LED bulbs, ...)

DomESP1 / DomESP2 - Board with relays and more for ESP8266 NodeMCU WiFi module

IoT board designed for NodeMCU v3 board using ESP8266 WiFi microcontroller

• 9-24V input voltage, with high efficiency DC/DC regulator with 5V output
• 4x SPST relays 5V with overvoltage protection
• 1x SSR output (max 40V output)
• 2x mosfet output (max 30V, 10A) for LED dimming or other DC loads
• 1x I²C interface for sensors, extended I/Os and more)
• 1x OneWire interface (DS18B20 or other 1wire sensors/devices)
