SRC-ROS-2

Ackermann Driving Autonomous Robot Platform

Environment Setup

• Ubuntu 20.04
• ROS2 Foxy
• Install Gazebo
• Dependency Packages

sudo apt install ros-foxy-nav2* -y
sudo apt install ros-foxy-ros2_control* -y

cd ~/ros2_ws
rosdinstall foxy

src_control_message clone
cbp src_control_message && rosfoxy

CAD Designed from Fusion 360

Simplified SRC Description

• robot state publisher & joint state publisher => robot description
• rviz launch

ros2 launch src_description src_description.launch.py

SRC Simulation 1 - SRC & Empty World

• Gazebo launch
• SRC spawn & ros2_control launch

ros2 launch src_gazebo empty_world.launch.py

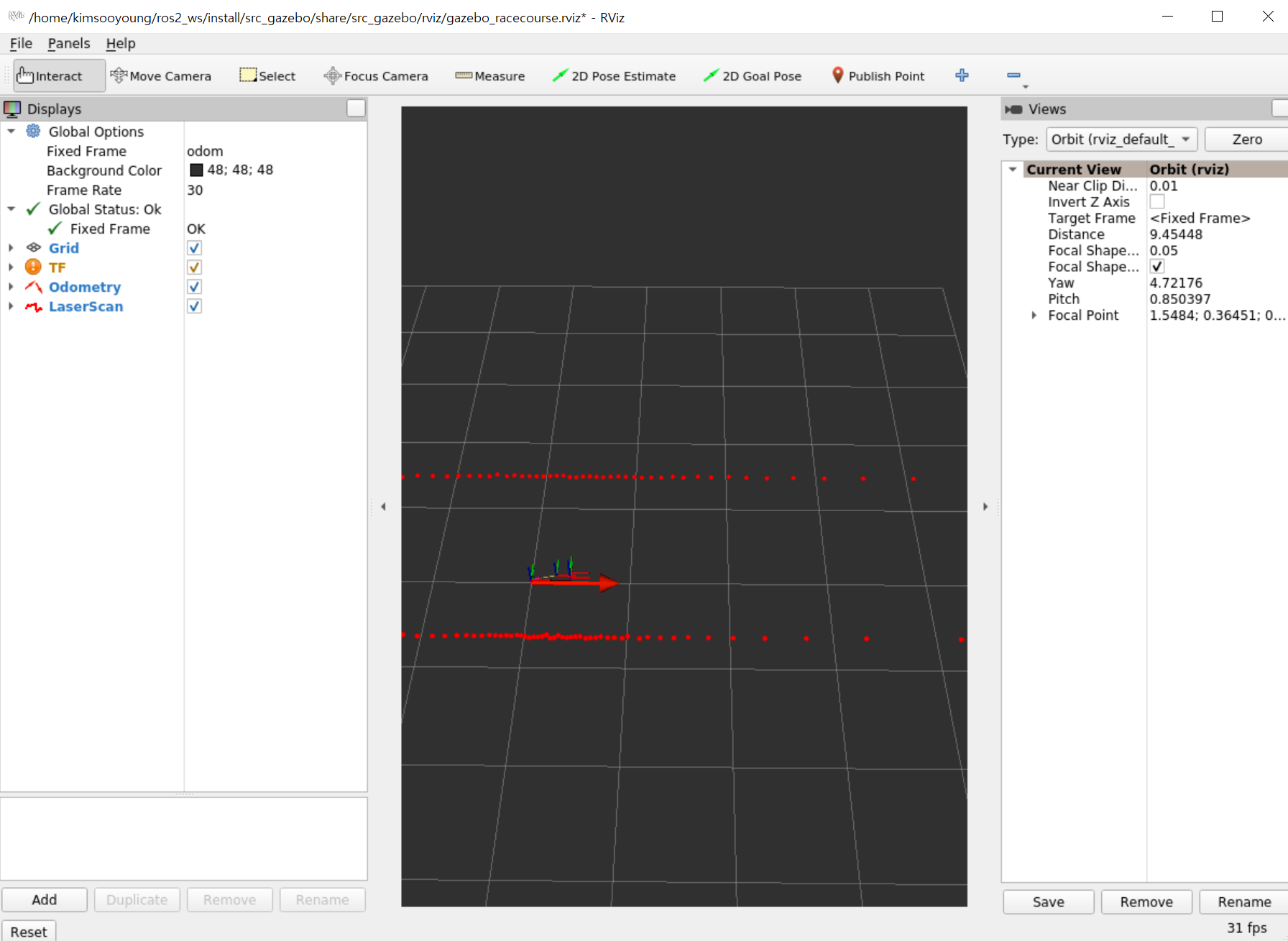

SRC Simulation 2 - SRC & MIT Racecourse

• Gazebo launch
• rqt_robot_steering launch
• rviz launch

ros2 launch src_gazebo racecourse.launch.py

Controller Pkg

• Move forward for 5 seconds

ros2 run src_gazebo_controller basic_control

• Ground Truth odometry Publisher utility

ros2 run src_gazebo_controller odom_utility_tools

자체 제작 odom과의 비교

• src_gazebo_controller.py

ackermann steering을 위한 controller 수식은 readme 참고

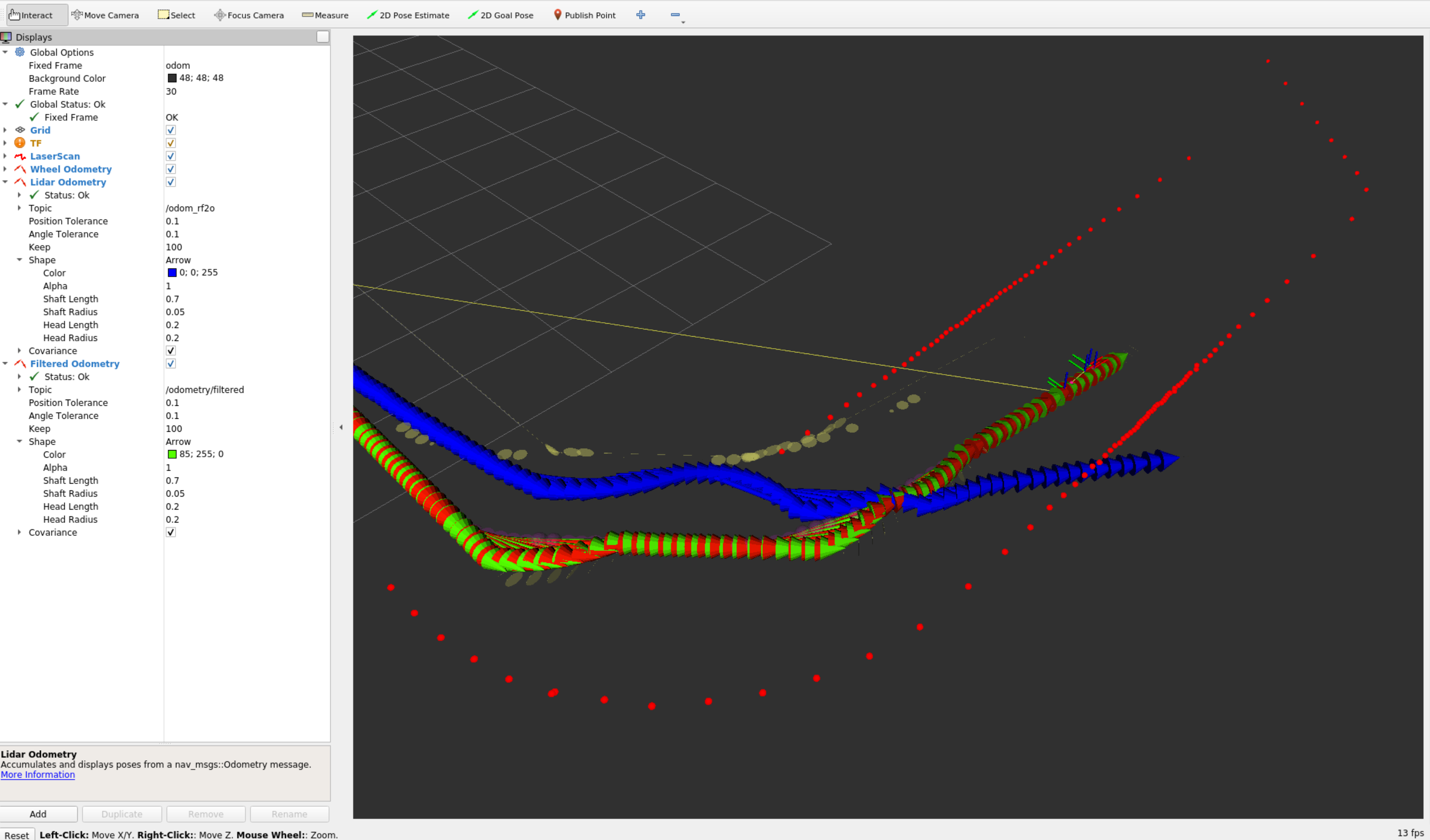

Sensor Fusion

ros2 launch src_sensor_fusion racecourse.launch.py
ros2 launch src_sensor_fusion robot_localization.launch.py

SLAM

ros2 launch src_gazebo racecourse.launch.py use_rviz:=false
ros2 launch src_slam src_slam_gazebo_slam_toolbox.launch.py
ros2 launch src_slam src_slam_gazebo_cartographer.launch.py use_sim_time:=true

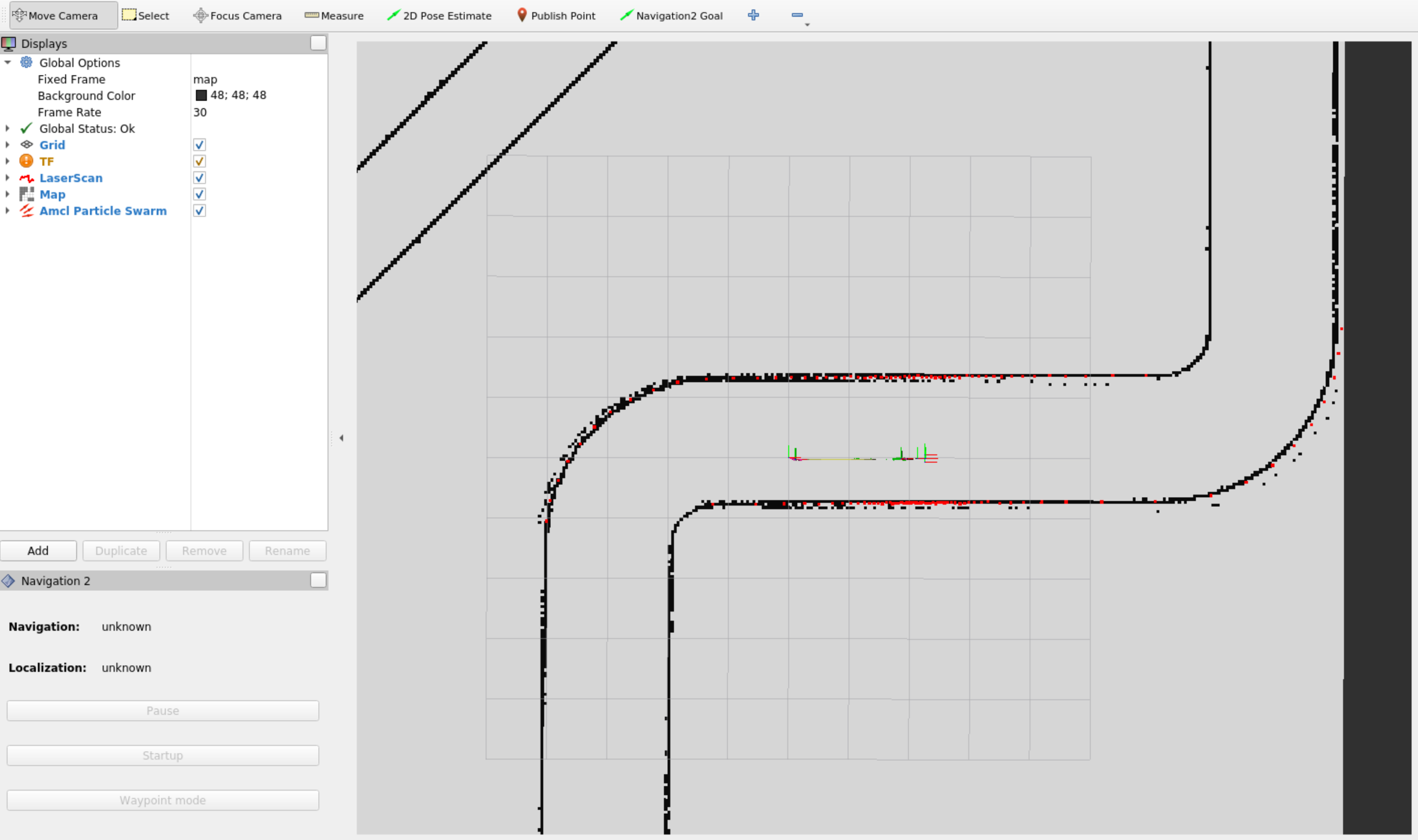

AMCL (Localization)

ros2 launch src_gazebo racecourse.launch.py use_rviz:=false
ros2 launch src_amcl amcl.launch.py

Navigation

ros2 launch src_gazebo racecourse.launch.py use_rviz:=false
ros2 launch src_nav bringup_launch.py

obstable avoidance

ros2 launch src_gazebo caffee_world.launch.py use_rviz:=false
ros2 launch src_nav caffee_bringup_launch.py
ros2 service call /global_costmap/clear_entirely_global_costmap nav2_msgs/srv/ClearEntireCostmap request:\ {}\

Real Robot

joy control

docker run -it --rm --name micro-ros-foxy --net=host -v /dev:/dev --privileged tge1375/sw-micro-ros:0.0.4
ros2 run micro_ros_agent micro_ros_agent serial --dev /dev/teensy4.0

ros2 launch src_demo joystick_control_foxy.launch.py

PID Tuning Requried

SLAM Toolbox

# LattePanda
docker run -it --rm --name micro-ros-foxy --net=host -v /dev:/dev --privileged tge1375/sw-micro-ros:0.0.4
ros2 run micro_ros_agent micro_ros_agent serial --dev /dev/teensy4.0
ros2 launch src_slam src_slam.launch.py open_rviz:=false

# remote rviz view
ros2 launch src_slam only_rviz_foxy.launch.py

ros2 run teleop_twist_keyboard teleop_twist_keyboard
# or
ros2 launch src_demo joystick_control_foxy.launch.py

Navigation

ros2 launch src_demo src_bringup_nav.launch.py
ros2 launch src_nav bringup_real_launch.py

# SRC launch
ros2 launch src_demo src_bringup_nav.launch.py
ros2 launch src_nav bringup_real_launch.py open_rviz:=false

# Remote launch
ros2 launch src_nav rviz_view_launch.py
ros2 launch src_nav rviz_view_foxy_launch.py

TODO

• [] 우분투에서 캡쳐 다시하기 (그림자, 카메라 이미지)
• [] 빌드 종속성 모두 확인 - Docker에서
• [] 장애물 회피용 param 최적화
