EchoCap

🎙️ 实时离线双语字幕叠加 · Real-time Offline Bilingual Caption Overlay

说话即字幕 · 离线可用 · GPU 加速 · 虚拟声卡直播 · 零配置
_{Speak → Whisper ASR → MarianMT Translation → Transparent Overlay → Live Stream}

🌐 语言 / Language

中文 | English

📖 中文文档

🤔 为什么是 EchoCap？

市面上不缺字幕工具。但 —

工具	痛点
🤖 云 API 方案	延迟高、要花钱、隐私泄露风险
🪟 Windows 自带	不支持实时翻译、不能自定义样式
🎬 OBS 插件	依赖在线服务、配置繁琐

EchoCap 是唯一一个 ——

✅ 完全离线：ASR + 翻译全在本地跑，断网照样用
✅ GPU 加速：ctranslate2 + CUDA，RTX 3060 上延迟 <100ms
✅ 直播神器：搭配虚拟声卡（VB-Cable / Voicemeeter），捕获系统音频实现 <300ms 端到端延迟的实时双语直播字幕
✅ 透明悬浮窗：PyQt6 无边框窗口，置顶 + 穿透模式，不挡内容
✅ 即装即用：安装包 ~581MB，首次启动自动下载模型（~800MB，仅需一次）
✅ 创作友好：OBS 绿幕抠像、SRT 字幕导出、全局快捷键

💡 简单说：把 OpenAI Whisper 的精度和 MarianMT 的翻译塞进一个 Windows 安装包，双击即用。

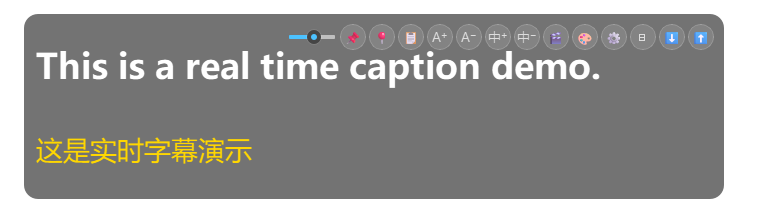

🎬 效果预览

⚡ 快速开始

方式一：下载安装包（推荐）

从 GitHub Releases 下载 EchoCap_Setup.exe → 双击安装 → 打开即用。

首次启动弹出模型设置向导，可选择自动下载（国内走 ModelScope CDN，无需 VPN）或手动选择已有模型目录。

方式二：从源码运行

git clone https://github.com/Saturn-shine/EchoCap.git
cd EchoCap
pip install -r requirements.txt
python main.py

✨ 功能一览

功能	说明
🎙️ 实时语音识别	基于 faster-whisper，CTranslate2 + CUDA GPU 加速，ASR 延迟 <100ms
🌐 实时英译中	Helsinki-NLP/opus-mt-en-zh 离线翻译模型
🎛️ VU 音量表	设置中实时麦克风电平指示（绿/黄/红）
🔌 虚拟声卡兼容	搭配 VB-Cable / Voicemeeter 捕获系统音频，端到端延迟 <300ms
🪟 透明悬浮窗	始终置顶、无边框、可拖拽、可缩放
🖱️ 穿透模式	鼠标点击透过字幕窗口，不干扰其他操作
⌨️ 全局快捷键	在其他应用聚焦时也能用的系统级快捷键
🎨 5 套配色主题	暗金 / 纯白 / 赛博绿 / 暖橙 / Nord 蓝
🎬 OBS 绿幕抠像	绿/蓝色背景模式，直接 Chroma Key
📋 系统托盘	右键菜单：暂停、穿透、设置、导出
📝 SRT 字幕导出	保存为 SubRip 格式，直接导入剪辑软件
🔲 极简模式	紧凑单行字幕，适合直播
🚀 开机自启	可选注册表 Run 键，打开电脑就用

🧠 技术架构

flowchart LR
    MIC[🎤 麦克风] --> VAD[WebRTC VAD<br/>语音活动检测]
    VAD --> BUFFER[环形缓冲区<br/>累积语音段]
    BUFFER --> ASR[faster-whisper<br/>CTranslate2 + CUDA]
    ASR --> EN[英文文本]
    EN --> MT[MarianMT<br/>opus-mt-en-zh]
    MT --> ZH[中文文本]
    EN & ZH --> OVERLAY[PyQt6 透明悬浮窗<br/>QPaintEngine 逐帧渲染]
    OVERLAY --> SCREEN[🖥️ 屏幕叠加]

组件	技术选型	原因
语音识别	faster-whisper + CTranslate2	比原始 Whisper 快 4×，GPU 内存占用减半
翻译	MarianMT (Helsinki-NLP)	Transformer 架构，EN→ZH 离线可用
VAD	WebRTC VAD	轻量级，40+ 语言通用
UI 框架	PyQt6	原生 Windows 渲染，透明窗口支持好
音频采集	sounddevice + PortAudio	低延迟 WASAPI 环回
打包	PyInstaller + Inno Setup	单 exe + Windows 原生安装程序

🔧 快捷键

快捷键	操作
`Ctrl + Shift + P`	暂停 / 继续
`Ctrl + Shift + H`	显示 / 隐藏窗口
`Ctrl + Shift + C`	复制当前字幕到剪贴板
`Ctrl + Shift + T`	切换极简模式

💡 所有快捷键可在 设置 → 快捷键 中自定义。

🔊 虚拟声卡 + 低延迟直播

EchoCap 的核心亮点之一是与虚拟声卡配合，可以实现延迟极低的实时双语字幕翻译，是直播场景的杀手级功能。

工作原理

系统音频 / 浏览器 / 游戏 / 视频会议
         │
         ▼
   VB-Cable / Voicemeeter（虚拟音频设备）
         │
         ▼
   EchoCap 音频输入（WASAPI 环回采集）
         │
    ┌────┴────┐
    │  ASR    │  faster-whisper + CUDA  < 100ms
    ├─────────┤
    │  翻译    │  MarianMT EN→ZH        < 50ms
    └────┬────┘
         │
         ▼
   透明悬浮窗叠加 → OBS 采集 → 直播推流

配置步骤

安装 VB-Cable（免费）或 Voicemeeter（高级混音）
将系统音频输出路由到虚拟声卡
EchoCap 设置 → 音频 → 输入设备 选择虚拟声卡的录制端
开启 OBS 绿幕模式，叠加到直播画面

⚡ 性能基准：RTX 3060 + VB-Cable，端到端延迟（语音 → 双语字幕）< 300ms，人耳几乎感知不到延迟。

🎬 OBS 配置

添加 窗口采集 → 窗口选 [EchoCap]
EchoCap 工具栏点击 🎬 开启绿幕模式
OBS 中对该窗口采集源添加 色度键 滤镜
关键色匹配（绿：#00FF00，蓝：#0000FF）

📂 项目结构

EchoCap/
├── main.py               # 应用入口，流程编排
├── overlay.py            # 透明悬浮窗（PyQt6 QPaintEngine）
├── pipeline.py           # 流式 ASR + 翻译处理管线
├── asr_engine.py         # faster-whisper 封装（auto 设备/精度回退）
├── translator.py         # MarianMT 翻译封装
├── hotkeys.py            # 全局热键（WH_KEYBOARD_LL 钩子 + Win32 回退）
├── settings_dialog.py    # 设置对话框（5 个标签页）
├── tray_icon.py          # 系统托盘图标与菜单
├── app_icon.py           # 图标加载（assets/logo.svg → app_icon.ico）
├── vu_meter.py           # VU 音量表组件
├── about_dialog.py       # 关于对话框 + 模型署名
├── export_srt.py         # 字幕 → SRT 转换器
├── update_checker.py     # GitHub Release 版本检查
├── config.py             # 配置 I/O + 默认值 + 自动修复
├── paths.py              # 跨平台路径解析（frozen ↔ dev）
├── logging_config.py     # 日志配置
├── hooks/                # PyInstaller 自定义钩子
├── EchoCap.spec          # PyInstaller spec
├── requirements.txt      # Python 依赖
└── VERSION               # 版本号

🛠️ 构建安装包

# 前置：PyInstaller + Inno Setup 6
pyinstaller --clean EchoCap.spec    # → dist/EchoCap/
iscc installer.iss                  # → Output/EchoCap_Setup.exe

⚙️ 设置参考

标签页	可配置项
音频	输入设备、采样率、VAD 灵敏度、静音超时
ASR	模型路径、设备（auto/CUDA/CPU）、精度、HF 镜像
翻译	语言对、本地模型路径
界面	字号、颜色、透明度、淡出时间、字体、对齐、穿透
快捷键	四组全局快捷键，完全自定义

🏷️ 模型许可

模型	许可证	来源
faster-whisper-small (Systran)	MIT	基于 OpenAI Whisper
opus-mt-en-zh (Helsinki-NLP)	CC-BY-4.0	HuggingFace

EchoCap 本体使用 MIT 许可证。

🤝 贡献

欢迎提 Issue 和 PR！

Fork 本仓库
创建分支 (git checkout -b feat/amazing)
提交修改 (git commit -m "Add amazing feature")
推送分支 (git push origin feat/amazing)
提交 Pull Request

🙏 致谢

faster-whisper — CTranslate2 加速的 Whisper 推理
Helsinki-NLP — 开源神经机器翻译模型
ModelScope — 国内模型下载加速
PyQt6 — Python Qt 绑定
sounddevice — PortAudio Python 封装

由 Saturn_shine 用 ❤️ 和 🐍 构建

📖 English Docs

🤔 Why EchoCap?

The market has no shortage of caption tools. The problem:

Tool	Pain Point
🤖 Cloud APIs	Latency, cost, data leaves your machine
🪟 Windows native	No real-time translation, no customization
🎬 OBS plugins	Online-dependent, complex setup

EchoCap is the only one that is —

✅ Fully Offline — ASR + translation run locally. No internet, no problem
✅ GPU Accelerated — CTranslate2 + CUDA. <100ms latency on RTX 3060
✅ Live Streaming Beast — Pair with a virtual audio cable (VB-Cable / Voicemeeter) for sub-300ms end-to-end bilingual captions on stream
✅ Transparent Overlay — PyQt6 frameless window, always-on-top with click-through
✅ Batteries Included — Installer ~581MB. First launch downloads models (~800MB, one-time) via ModelScope CDN
✅ Creator-Ready — OBS chroma key, SRT export, global hotkeys

💡 Think of it as OpenAI Whisper + MarianMT, shrink-wrapped into a single Windows installer.

🎬 Preview

⚡ Quick Start

Option 1: Pre-built Installer (Recommended)

Download EchoCap_Setup.exe from GitHub Releases → double-click → done.

First launch shows a model setup wizard — auto-download (~800MB, one-time via ModelScope CDN) or browse existing model files.

Option 2: Run from Source

git clone https://github.com/Saturn-shine/EchoCap.git
cd EchoCap
pip install -r requirements.txt
python main.py

✨ Features

Feature	Description
🎙️ Real-time ASR	faster-whisper with CTranslate2 + CUDA GPU acceleration, <100ms ASR latency
🌐 EN→ZH Translation	Helsinki-NLP/opus-mt-en-zh, fully offline
🎛️ VU Meter	Real-time mic level indicator in Settings (green/yellow/red)
🔌 Virtual Audio Cable	Capture system audio via VB-Cable / Voicemeeter, <300ms end-to-end
🪟 Transparent Overlay	Always-on-top, frameless, draggable, resizable
🖱️ Click-through Mode	Mouse passes through the overlay, no interference
⌨️ Global Hotkeys	System-level shortcuts that work across all apps
🎨 5 Color Themes	Dark Gold · Pure White · Cyber Green · Warm Orange · Nord Blue
🎬 OBS Chroma Key	Green/blue background modes for instant chroma keying
📋 System Tray	Right-click: pause, click-through, settings, export
📝 SRT Export	SubRip format — drop straight into DaVinci / Premiere
🔲 Minimal Mode	Compact single-line overlay for streaming
🚀 Auto-Start	Optional Windows boot launch via registry Run key

🧠 Architecture

flowchart LR
    MIC[🎤 Microphone] --> VAD[WebRTC VAD<br/>Speech Detection]
    VAD --> BUFFER[Ring Buffer<br/>Speech Segments]
    BUFFER --> ASR[faster-whisper<br/>CTranslate2 + CUDA]
    ASR --> EN[English Text]
    EN --> MT[MarianMT<br/>opus-mt-en-zh]
    MT --> ZH[Chinese Text]
    EN & ZH --> OVERLAY[PyQt6 Overlay<br/>QPaintEngine]
    OVERLAY --> SCREEN[🖥️ Display]

Component	Stack	Rationale
ASR	faster-whisper + CTranslate2	4× faster than vanilla Whisper, half the VRAM
Translation	MarianMT (Helsinki-NLP)	Transformer-based, offline EN→ZH
VAD	WebRTC VAD	Lightweight, battle-tested across 40+ languages
UI	PyQt6	Native Windows rendering, robust transparent windows
Audio I/O	sounddevice + PortAudio	Low-latency WASAPI loopback
Packaging	PyInstaller + Inno Setup	Single exe + native Windows installer

🔧 Key Bindings

Shortcut	Action
`Ctrl + Shift + P`	Pause / Resume
`Ctrl + Shift + H`	Show / Hide overlay
`Ctrl + Shift + C`	Copy caption to clipboard
`Ctrl + Shift + T`	Toggle Minimal Mode

💡 All hotkeys are customizable in Settings → Hotkeys.

🔊 Virtual Audio Cable + Low-Latency Streaming

EchoCap's killer feature is pairing with a virtual audio cable for ultra-low-latency bilingual captions — ideal for live streaming.

Data Flow

System Audio / Browser / Game / Zoom
         │
         ▼
   VB-Cable / Voicemeeter（virtual audio device）
         │
         ▼
   EchoCap Audio Input（WASAPI loopback capture）
         │
    ┌────┴────┐
    │  ASR    │  faster-whisper + CUDA  < 100ms
    ├─────────┤
    │   MT    │  MarianMT EN→ZH        < 50ms
    └────┬────┘
         │
         ▼
   Transparent overlay → OBS capture → Live stream

Setup

Install VB-Cable (free) or Voicemeeter (advanced mixing)
Route your system audio output to the virtual cable
In EchoCap Settings → Audio → Input Device, select the virtual cable's recording endpoint
Enable OBS chroma key mode and overlay onto your stream

⚡ Benchmark: RTX 3060 + VB-Cable — end-to-end latency (speech → bilingual captions) < 300ms, imperceptible to viewers.

🎬 OBS Setup

Add a Window Capture source → select [EchoCap]
Click 🎬 in the EchoCap toolbar to enable chroma key mode
In OBS, add a Chroma Key filter on the Window Capture source
Match key color (green: #00FF00, blue: #0000FF)

📂 Project Structure

EchoCap/
├── main.py               # App entry point & orchestration
├── overlay.py            # Transparent overlay (PyQt6 QPaintEngine)
├── pipeline.py           # Streaming ASR + translation pipeline
├── asr_engine.py         # faster-whisper wrapper (auto device/precision fallback)
├── translator.py         # MarianMT translation wrapper
├── hotkeys.py            # Global hotkeys (WH_KEYBOARD_LL hook + Win32 fallback)
├── settings_dialog.py    # Settings dialog (5 tabs)
├── tray_icon.py          # System tray icon & menu
├── app_icon.py           # Icon loader (assets/logo.svg → app_icon.ico)
├── vu_meter.py           # VU meter widget
├── about_dialog.py       # About dialog + model attribution
├── export_srt.py         # Caption → SRT converter
├── update_checker.py     # GitHub Release version checker
├── config.py             # Config I/O + defaults + auto-repair
├── paths.py              # Cross-platform path resolution (frozen ↔ dev)
├── logging_config.py     # Logging setup
├── hooks/                # PyInstaller custom hooks
├── EchoCap.spec          # PyInstaller spec
├── requirements.txt      # Python dependencies
└── VERSION               # Version file

🛠️ Build the Installer

# Prerequisites: PyInstaller + Inno Setup 6
pyinstaller --clean EchoCap.spec    # → dist/EchoCap/
iscc installer.iss                  # → Output/EchoCap_Setup.exe

⚙️ Settings Reference

Tab	Options
Audio	Input device, sample rate, VAD sensitivity, silence timeout
ASR	Model path, device (auto/CUDA/CPU), compute type, HF mirror
Translate	Language pair, local model path
UI	Font sizes, colors, opacity, fade-out, font family, alignment, click-through
Hotkeys	All four global shortcuts — fully configurable

🏷️ Model Licenses

Model	License	Source
faster-whisper-small (Systran)	MIT	Based on OpenAI Whisper
opus-mt-en-zh (Helsinki-NLP)	CC-BY-4.0	HuggingFace

EchoCap itself is licensed under MIT.

🤝 Contributing

Issues and PRs welcome!

Fork the repo
Create a branch (git checkout -b feat/amazing-feature)
Commit changes (git commit -m "Add amazing feature")
Push (git push origin feat/amazing-feature)
Open a Pull Request

🙏 Acknowledgments

faster-whisper — CTranslate2-accelerated Whisper inference
Helsinki-NLP — Open-source neural machine translation
ModelScope — Model CDN for China mainland users
PyQt6 — Python Qt bindings
sounddevice — PortAudio Python wrapper

Built with ❤️ and 🐍 by Saturn_shine

Name		Name	Last commit message	Last commit date
Latest commit History 9 Commits
assets		assets
hooks		hooks
.gitignore		.gitignore
LICENSE		LICENSE
README.md		README.md
about_dialog.py		about_dialog.py
app_icon.ico		app_icon.ico
app_icon.py		app_icon.py
asr_engine.py		asr_engine.py
config.py		config.py
export_srt.py		export_srt.py
hotkeys.py		hotkeys.py
logging_config.py		logging_config.py
main.py		main.py
overlay.py		overlay.py
paths.py		paths.py
pipeline.py		pipeline.py
requirements.txt		requirements.txt
settings_dialog.py		settings_dialog.py
translator.py		translator.py
tray_icon.py		tray_icon.py
update_checker.py		update_checker.py
vu_meter.py		vu_meter.py

Folders and files

Latest commit

History

Repository files navigation

EchoCap

🎙️ 实时离线双语字幕叠加 · Real-time Offline Bilingual Caption Overlay

🌐 语言 / Language

📖 中文文档

🤔 为什么是 EchoCap？

🎬 效果预览

⚡ 快速开始

方式一：下载安装包（推荐）

方式二：从源码运行

✨ 功能一览

🧠 技术架构

🔧 快捷键

🔊 虚拟声卡 + 低延迟直播

工作原理

配置步骤

🎬 OBS 配置

📂 项目结构

🛠️ 构建安装包

⚙️ 设置参考

🏷️ 模型许可

🤝 贡献

🙏 致谢

📖 English Docs

🤔 Why EchoCap?

🎬 Preview

⚡ Quick Start

Option 1: Pre-built Installer (Recommended)

Option 2: Run from Source

✨ Features

🧠 Architecture

🔧 Key Bindings

🔊 Virtual Audio Cable + Low-Latency Streaming

Data Flow

Setup

🎬 OBS Setup

📂 Project Structure

🛠️ Build the Installer

⚙️ Settings Reference

🏷️ Model Licenses

🤝 Contributing

🙏 Acknowledgments

About

Topics

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases 2

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

Packages
