CARVER-GEN3 Autonomous Robot Platform

ROS2 Humble Ubuntu 22.04 Python 3.10 MOLA SLAM Livox MID360 STM32G474RE License MIT Rear Wheel Drive Ackermann Steering Contribute

Overview

CARVER-GEN3 is an autonomous mobile robot platform with rear-wheel drive, Ackermann steering, and LiDAR-based navigation. Built on ROS2 Humble for research in autonomous navigation, SLAM, and path tracking control.

Version: 3.0
ROS2 Distribution: Humble
Operating System: Ubuntu 22.04 LTS
License: MIT

Showcase Video

Video 1

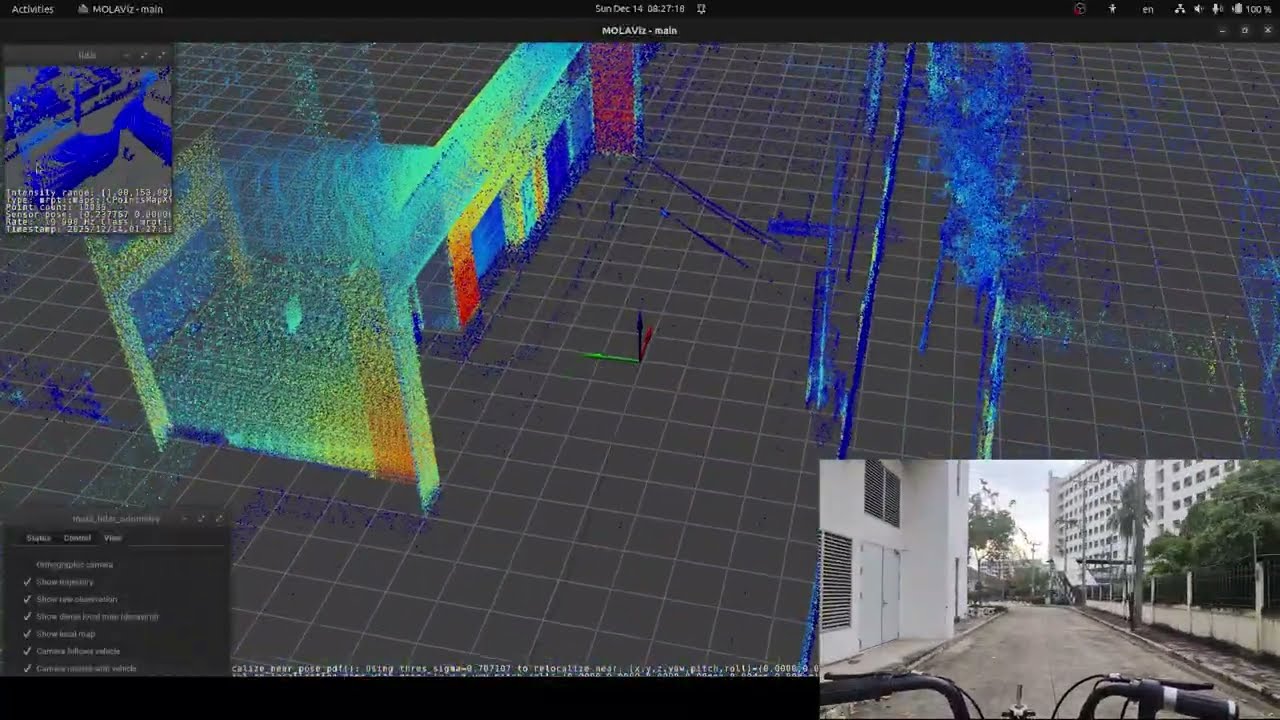

Localization via MOLA-LO
Video 2

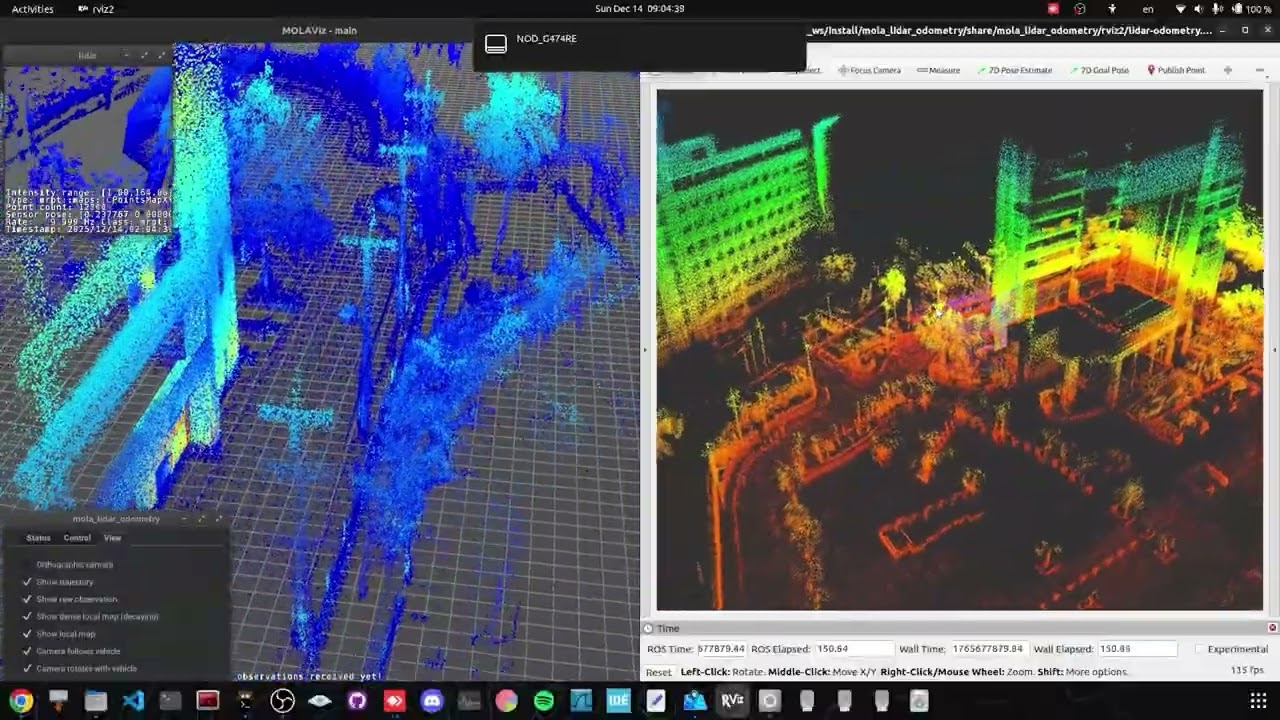

SLAM via MOLA-LO
Video 3

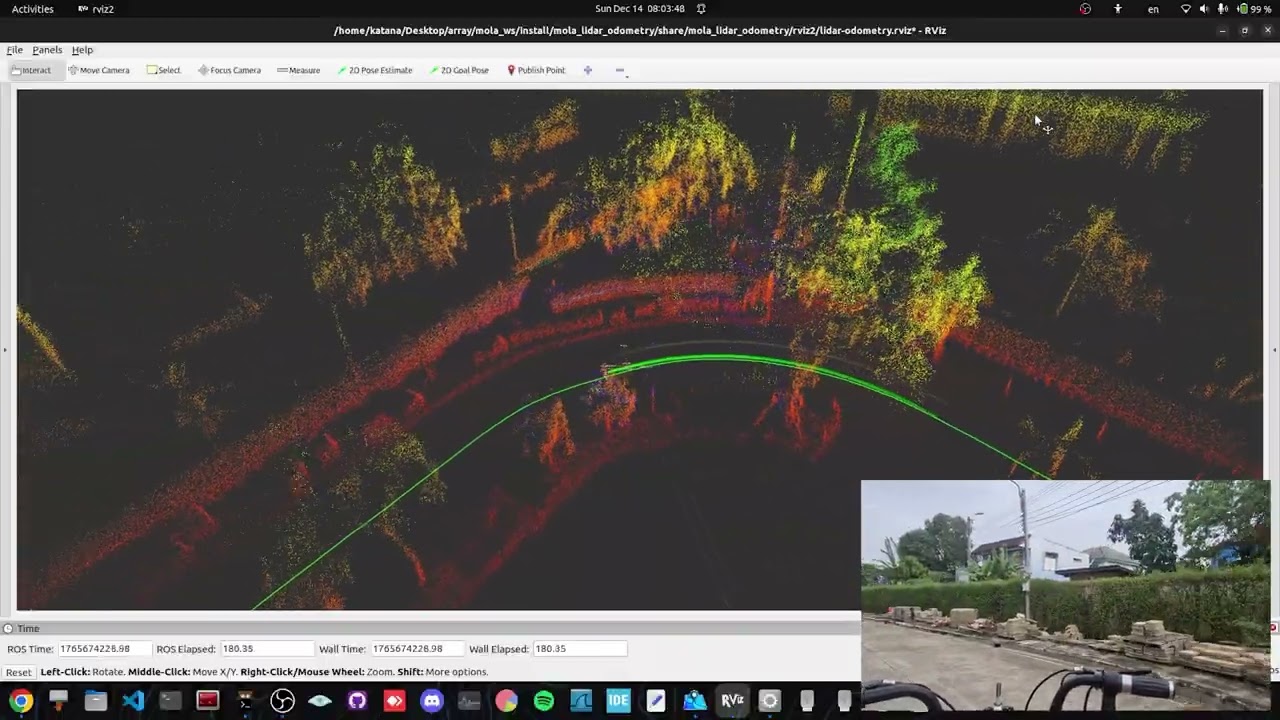

Controller Path Tracking Showcase

Table of Contents

  1. Key Features
  2. System Architecture
  3. Hardware Requirements
  4. Installation
  5. Package Descriptions
  6. Additional Hardware Connections
  7. Configuration
  8. Quick Start Guide
  9. Path Tracking Controllers
  10. Localization and Mapping
  11. Troubleshooting
  12. References

1. Key Features

Hardware

  • Drive System: Rear-wheel drive (Using ODrive controllers)
  • Steering: Front Ackermann steering with absolute encoders
  • Sensing: Livox MID360 LiDAR, BNO055 IMU, AMT212EV encoders
  • Control: 3× STM32G474RE microcontrollers running Micro-ROS

Software

  • SLAM: MOLA framework for mapping (Complete MOLA guide here)
  • Localization: GICP/ICP Cov matching
  • Controllers: Stanley, Pure Pursuit and Combined path tracking
  • Real-time Control: 10 Hz control loop, 10 Hz localization

Specifications

  • Wheelbase: 0.8m
  • Max Speed: 3.5 m/s
  • Steering Range: ±0.6 rad (±34°)
  • Localization Accuracy: <0.02m

2. System Architecture

View System Architecture (PDF)

System Overview

The Carver system consists of three main subsystems: Perception & Localization, Decision & Control, and Hardware Interface (Micro-ROS). The system uses pre-planned paths with MOLA-SLAM for localization, enabling autonomous path following.


1. Hardware Interface Layer (Micro-ROS Agent)

The micro_ros_agent bridges three STM32 microcontrollers to ROS2:

  • bno055_publisher - Reads BNO055 IMU data from STM32

    • Publishes: /bno055_data (Float64MultiArray)
  • carver_steering - Controls steering servo, reads AMT212 encoder feedback

    • Subscribes: /steering_angle (Float32)
    • Publishes: /amt_publisher (amt_read)
  • carver_interface - Handles accelerator input, emergency button, and lighting control

    • Subscribes: /light_signal_command (Int8)
    • Publishes: /accl_publisher (UInt16), /carver_emergency (Bool), /accel_direction (Int8), /carver_mode (Int8)

2. Perception & Localization

Sensors:

  • carver_livox_lidar.launch.py - Launches Livox 3D LiDAR

    • Publishes: /livox/lidar (PointCloud2), /livox/imu (Imu)
  • bno055_imu.py - Processes raw IMU data from STM32

    • Subscribes: /bno055_data
    • Publishes: /imu (sensor_msgs/Imu)

Localization:

  • MOLA_lidar_localization - 3D LiDAR-based localization using pre-built maps
    • Subscribes: /livox/lidar, /imu
    • Publishes: /state_estimator/pose (nav_msgs/Odometry)
    • Requires: map.simplemap + map.mm (pre-built map files)

3. Decision & Control Layer

Mode Management:

  • carver_mode.py - Switches modes
    • Subscribes: /controller_speed, /manual_speed
    • Publishes: /target_speed, /carver_mode

Path Tracking Controllers:

  • carver_controller.py - Implements Stanley / Pure Pursuit / Combined controller
    • Subscribes: /state_estimator/pose
    • Publishes: /controller_speed, /steering_angle
    • Requires: path.yaml (pre-planned waypoints)

Manual Control:

  • carver_manual_steering.py - Manual joystick/handle control
    • Subscribes: /accel_direction, /accl_publisher
    • Publishes: /manual_speed

Motor Control:

  • carver_odrive.py - Interfaces with ODrive motor controller
    • Subscribes: /target_speed
    • Outputs: Velocity setpoint to ODrive (with velocity feedback)

Operational Sequence

Phase 1: Mapping (Offline)

  1. Drive the vehicle manually while recording LiDAR/IMU data
  2. Build map.simplemap and map.mm using MOLA offline tools
  3. Define waypoints and save as path.yaml

Phase 2: Localization (Runtime)

  1. Livox LiDAR publishes point cloud to /livox/lidar
  2. BNO055 IMU data flows: STM32 → micro_ros → bno055_imu.py/imu
  3. MOLA localizes against pre-built map, publishes pose to /state_estimator/pose

Phase 3: Path Following (Runtime)

  1. Controller loads waypoints from path.yaml
  2. Controller receives current pose from /state_estimator/pose
  3. Stanley/Pure Pursuit algorithm computes:
    • Steering angle → /steering_angle → STM32 → Servo
    • Target speed → /controller_speedcarver_mode/target_speed → ODrive

Phase 4: Actuation

  1. carver_steering (STM32) receives steering command, controls servo via PWM
  2. AMT212 encoder provides steering angle feedback
  3. carver_odrive sends velocity setpoint to ODrive S1 Pro
  4. ODrive returns velocity feedback for closed-loop control

3. Hardware Requirements

Computing Hardware

Minimum Requirements:

  • CPU: Quad-core x86-64 @ 2.0 GHz
  • RAM: 16 GB DDR5
  • Storage: 256 GB SSD
  • OS: Ubuntu 22.04 LTS
  • USB: Multiple USB 3.0 ports

Recommended (Tested Configuration):

  • System: ASUS ROG G17 (2025)
  • CPU: AMD Ryzen 9 7945HX (16 cores, 32 threads)
  • GPU: NVIDIA RTX 4060 (optional, for future vision features)
  • RAM: 24 GB DDR5
  • Storage: NVMe SSD 2TB

Microcontrollers

3× STM32G474RE Units:

  • ARM Cortex-M4F @ 170MHz
  • 512KB Flash, 128KB RAM
  • Hardware FPU, USB 2.0
  • Running Micro-ROS firmware

Unit 1: Encoder interface (AMT212EV) Unit 2: Steering control
Unit 3: BNO055 IMU interface

Sensors

Livox MID360 LiDAR:

  • 360° horizontal FOV
  • Up to 70m range
  • 200K points/sec
  • Connection: Ethernet or USB
  • Power: 12V DC

BNO055 9-DOF IMU:

  • Built-in sensor fusion
  • Connection: I2C to STM32
  • Power: 3.3V or 5V

AMT212EV Absolute Encoders:

  • 12-bit resolution (4096 positions/rev)
  • Interface: SPI
  • Power: 5V DC

Actuators

ODrive v3.6 Motor Controllers:

  • Connection: USB 2.0
  • Power: 24V DC
  • Hall sensor feedback

Motors:

  • Brushless DC motors (rear wheels)
  • Built-in Hall sensors
  • Direct drive

Front Steering:

  • DC Motor actuated
  • Ackermann geometry linkage
  • AMT212EV encoders for feedback

4. Installation

Prerequisites

sudo rosdep init && rosdep update

Clone Repository

git clone https://github.com/Whan000/CARVER-GEN3.git
cd CARVER-GEN3/carver_ws

Install Dependencies

# Point Cloud Library
sudo apt install libpcl-dev ros-humble-pcl-ros ros-humble-pcl-conversions pcl-tools

# Python dependencies
pip3 install numpy scipy matplotlib transforms3d pyserial pyyaml odrive

# Clone Livox driver into src/
git clone https://github.com/Livox-SDK/livox_ros_driver2.git src/livox_ros_driver2

# Install ROS dependencies via rosdep
rosdep install --from-paths src --ignore-src -r -y

# Build
colcon build
source install/setup.bash
echo "source ~/CARVER-GEN3/carver_ws/install/setup.bash" >> ~/.bashrc

Micro-ROS Setup

mkdir -p ~/microros_ws/src
cd ~/microros_ws
git clone -b $ROS_DISTRO https://github.com/micro-ROS/micro_ros_setup.git src/micro_ros_setup
sudo apt update && rosdep update
rosdep install --from-paths src --ignore-src -y
colcon build
source install/local_setup.bash

# Build firmware and agent
ros2 run micro_ros_setup create_firmware_ws.sh host
ros2 run micro_ros_setup build_firmware.sh
source install/local_setup.bash
ros2 run micro_ros_setup create_agent_ws.sh
ros2 run micro_ros_setup build_agent.sh
source install/local_setup.bash

STM32/Nucleo Setup: See Micro-ROS with Nucleo Board for firmware flashing and configuration.

Device Permissions

# Add user to dialout group
sudo usermod -a -G dialout $USER

# ODrive udev rules
echo 'SUBSYSTEM=="usb", ATTR{idVendor}=="1209", ATTR{idProduct}=="0d32", MODE="0666"' | \
  sudo tee /etc/udev/rules.d/91-odrive.rules

sudo udevadm control --reload-rules && sudo udevadm trigger
# Logout/login required

Verify Installation

ros2 pkg list

Expected packages:

  • amt212ev_interfaces
  • bno055_imu
  • carver_bringup
  • carver_controller
  • carver_description
  • carver_manager
  • carver_odrive
  • carver_simulation
  • lidar_localization_ros2
  • ndt_omp_ros2

5. Package Descriptions

5.1 carver_description

URDF robot model and visualization.

Contents:

  • urdf/ - Robot structure definition
  • meshes/ - STL files
  • launch/ - Visualization launch files
  • config/ - Controller parameters

Usage:

ros2 launch carver_description simple_display.launch.py

5.2 carver_bringup

System startup launch files.

Launch Files:

  • bringup.launch.py - Full system startup
  • manual_steering.launch.py - Manual control only
  • slam.launch.py - SLAM / mapping mode (see MOLA-SLAM for details)
  • uros.launch.py - Micro-ROS agents only

Usage:

ros2 launch carver_bringup bringup.launch.py

5.3 carver_controller

Path tracking controllers.

Controllers:

  • carver_stanley.py - Stanley Controller
  • carver_purepursuit.py - Pure Pursuit Controller
  • carver_combined.py - Adaptive Combined Controller

Trajectory Files:

  • path/trajectory200.yaml - 200 path sampling points
  • path/trajectory1000.yaml - 1000 path sampling points

5.4 carver_odrive

ODrive motor controller interface.

Scripts:

  • carver_odrive.py - Main interface node
  • dummy_steering.py - Testing/simulation

5.5 carver_manager

Mode management and manual control.

Scripts:

  • carver_mode.py - Mode switching
  • carver_manual_steering.py - Manual control

5.6 carver_simulation

Gazebo simulation environment.

Usage:

ros2 launch carver_simulation simulation-full.launch.py

5.7 bno055_imu

BNO055 IMU data converter (Micro-ROS → standard ROS2).

5.8 lidar_localization_ros2

NDT-OMP based localization.

Features:

  • Real-time point cloud registration
  • Map loading and management
  • Pose estimation

5.9 ndt_omp_ros2

OpenMP-accelerated NDT library.


6. Additional Hardware Connections

Livox MID360

Ethernet Connection:

# Configure static IP
sudo ifconfig eth0 192.168.1.50 netmask 255.255.255.0

# Test connection
ping 192.168.1.10

Persistent Device Names

Create udev rules:

sudo nano /etc/udev/rules.d/99-carver-usb.rules

Add rules (adjust serial numbers to match your devices):

# Encoder Interface
SUBSYSTEM=="tty", ATTRS{idVendor}=="0483", ATTRS{idProduct}=="5740", \
  ATTRS{serial}=="ENCODER_UNIT_001", SYMLINK+="carver_interface", \
  MODE="0666", GROUP="dialout"

# Steering Control
SUBSYSTEM=="tty", ATTRS{idVendor}=="0483", ATTRS{idProduct}=="5740", \
  ATTRS{serial}=="STEERING_UNIT_001", SYMLINK+="carver_steering", \
  MODE="0666", GROUP="dialout"

# IMU
SUBSYSTEM=="tty", ATTRS{idVendor}=="0483", ATTRS{idProduct}=="5740", \
  ATTRS{serial}=="IMU_UNIT_001", SYMLINK+="carver_bno055", \
  MODE="0666", GROUP="dialout"

Reload rules:

sudo udevadm control --reload-rules
sudo udevadm trigger

Verify:

ls -l /dev/carver_*

Always use symbolic names in code:

# ✓ Good
serial_port = '/dev/carver_interface'

# ✗ Bad - will break!
serial_port = '/dev/ttyACM1'

7. Configuration

Robot Parameters

File: carver_description/urdf/carver_params.xacro

<!-- Physical dimensions -->
<xacro:property name="wheelbase_length" value="0.8"/>  <!-- meters -->
<xacro:property name="track_width" value="0.4"/>
<xacro:property name="wheel_radius" value="0.075"/>

<!-- Steering limits -->
<xacro:property name="max_steering_angle" value="0.6"/>  <!-- ~34° -->

<!-- Mass properties -->
<xacro:property name="base_mass" value="25.0"/>  <!-- kg -->

ODrive Configuration

File: odrive_config/OdriveConfig.json

Key Parameters:

{
  "axis0.config.motor.pole_pairs": 4,
  "axis0.config.motor.phase_resistance": 0.0354,
  "axis0.config.motor.current_soft_max": 50.0,
  "axis0.config.motor.current_hard_max": 100.0,

  "axis0.controller.config.control_mode": 2,  // Velocity
  "axis0.controller.config.vel_limit": 60.0,  // Rev/s
  "axis0.controller.config.vel_gain": 3.0,

  "hall_encoder0.config.enabled": true,
  "hall_encoder0.config.edges_calibrated": true
}

Calibrate each ODrive:

# In odrivetool
odrv0.axis0.requested_state = AXIS_STATE_FULL_CALIBRATION_SEQUENCE
# Wait for completion
odrv0.save_configuration()
odrv0.reboot()

Controller Parameters

File: carver_description/config/carver_controller_param.yaml

controller_manager:
  ros__parameters:
    update_rate: 500  # Hz
    use_sim_time: true

steering_controller:
  ros__parameters:
    joints:
      - base_front_left_steering_joint
      - base_front_right_steering_joint

wheel_velocity_controller:
  ros__parameters:
    joints:
      - base_rear_left_wheel_joint
      - base_rear_right_wheel_joint

8. Quick Start Guide

Create Map with MOLA

MOLA SLAM is used to create maps for autonomous navigation.

Complete MOLA configuration and usage guide:
https://github.com/Whan000/MOLA-SLAM

Quick Overview:

1. Start System:

# Terminal 1
ros2 launch carver_bringup bringup.launch.py

# Terminal 2 - Localization
ros2 launch mola_bringup mola_slam.py

2. Set Initial Pose:

  1. mola_localize_launch.py will show a GUI
  2. Key your initial pose

3. Start Controller:

Stanley: default:

ros2 run carver_controller carver_stanley.py

Pure Pursuit: default:

ros2 run carver_controller carver_purepursuit.py

Combined: default:

ros2 run carver_controller carver_combined.py

4. Emergency Stop:

Press hardware E-stop


9. Path Tracking Controllers

Stanley Controller

The Stanley Controller uses a non-linear control law to keep the vehicle's front axle on the path. It combines heading error ($\theta_e$) and cross-track error ($e$).

Topics:

Subscribed:

  • /state_estimator/pose (nav_msgs/Odometry)
  • /imu (sensor_msgs/Imu)

Published:

  • /steering_angle (std_msgs/Float32)
  • /controller_speed (std_msgs/Float32)
  • /path_visualization (nav_msgs/Path)

Parameters:

k_heading: 0.25          # Heading error gain (Implicit in control law)
k_crosstrack: 0.1        # Cross-track error gain (k)
ks_gain: 0.1             # Velocity softening factor (k_s, for denominator)
target_speed: 1.25       # m/s
max_steer: 0.6           # rad (~34°)
lookahead_distance: 5.0  # m (Note: Stanley uses *closest point* for CTE, not lookahead distance)

Steering Law: The control law calculates the required steering angle ($\delta$) based on the heading error ($\theta_e$) and the cross-track error ($e$).

$$ \delta = \theta_e + \arctan\left(\frac{k_{\text{crosstrack}} \cdot e}{k_s + v}\right) $$

Where:

  • $\delta$: steering angle
  • $\theta_e$: heading error (orientation difference between vehicle and path segment)
  • $e$: cross-track error (perpendicular distance from front axle to path)
  • $v$: current longitudinal velocity
  • $k_{\text{crosstrack}}$: proportional gain for correcting lateral error
  • $k_s$: speed softening constant to prevent singularity at $v \approx 0$

Tuning:

  • $\uparrow$ k_heading = more aggressive heading correction
  • $\uparrow$ k_crosstrack = faster lateral correction
  • $\uparrow$ lookahead_distance = smoother but may cut corners

Best for:

  • Preplanned trajectories
  • Racing or time trials

Pure Pursuit Controller

The Pure Pursuit Controller uses geometric control based on driving the vehicle towards a single target point located some distance ($l_d$) ahead on the path.

Topics:

Subscribed:

  • /state_estimator/pose (nav_msgs/Odometry)
  • /imu (sensor_msgs/Imu)

Published:

  • /steering_angle (std_msgs/Float32)
  • /controller_speed (std_msgs/Float32)
  • /path_visualization (nav_msgs/Path)

Parameters:

wheelbase: 0.8               # m (L in the formula)
max_steering_angle: 0.6      # rad
min_lookahead: 3.0           # m (Ld minimum)
max_lookahead: 5.0           # m (Ld maximum)
lookahead_gain: 1.0          # Speed-dependent gain (k_l in dynamic Ld formula)
target_speed: 1.0            # m/s

Steering Law: The required steering angle ($\delta$) is calculated to reach the lookahead point, forming an arc based on Ackermann kinematics:

$$ \delta = \arctan\left(\frac{2 \cdot L \cdot \sin(\alpha)}{l_d}\right) $$

Where:

  • $L$: wheelbase
  • $\alpha$: angle between the vehicle's current heading and the vector to the lookahead point
  • $l_d$: lookahead distance

Dynamic Lookahead: The lookahead distance is often made proportional to the vehicle's speed for smooth performance:

$$ l_d = \min_{\text{lookahead}} + \text{lookahead}_{\text{gain}} \times v $$

$$ l_d = \text{clip}(l_d, \min_{\text{lookahead}}, \max_{\text{lookahead}}) $$

Features:

  • Automatic speed reduction in turns
  • Monotonic waypoint progression
  • Completion detection

Best for:

  • Smooth curved paths
  • Initial testing

Combined Controller

The Combined Controller dynamically blends the outputs of the Pure Pursuit ($\delta_{PP}$) and Stanley ($\delta_{ST}$) controllers based on the curvature of the path ($\gamma$) at the robot's location. This aims to leverage the stability of Pure Pursuit on curves and the accuracy of Stanley on straights.

Algorithm Logic:

  1. Calculate Path Curvature ($\gamma$): Determine the path curvature at the current segment using the angle change between adjacent path vectors.

  2. Normalize Curvature ($\gamma_{\text{norm}}$): $\gamma$ is normalized relative to a minimum turning radius constraint ($\gamma_{\text{norm}}$).

$$ \gamma_{\text{norm}} = 2 \cdot \arcsin\left(\frac{d}{2 \cdot R_{\min}}\right) $$

  1. Calculate Weight Factors ($\mathbf{k_{PP}}, \mathbf{k_{ST}}$): The weighting factors depend on the normalized curvature, varying between $K_{\min}$ (for straight sections) and $K_{\max}$ (for sharp turns).

$$ k_{PP} = K_{\min} + \left(\frac{\gamma}{\gamma_{\text{norm}}}\right) \cdot (K_{\max} - K_{\min}) $$

$$ k_{ST} = 1 - k_{PP} $$

  1. Combine Outputs: The final steering command ($\delta$) is a weighted average.

$$ \delta = k_{PP} \cdot \delta_{PP} + k_{ST} \cdot \delta_{ST} $$

Control Law:

$$ \delta = \left[K_{\min} + \left(\frac{\gamma}{\gamma_{\text{norm}}}\right) \cdot (K_{\max} - K_{\min})\right] \cdot \delta_{PP} + \left[1 - k_{PP}\right] \cdot \delta_{ST} $$

Tuning Parameters (Embedded in Code):

  • Weights: $K_{\min} (0.2)$ and $K_{\max} (0.8)$ define the range of Pure Pursuit influence.
  • Curvature Norm ($\gamma_{\text{norm}}$): Derived from the minimum turning radius ($R_{\min} = 7.0\text{ m}$).
  • Gains: Inherits tuning properties from both Stanley and Pure Pursuit (e.g., k_crosstrack, lookahead_gain_k1).

Creating Trajectories

YAML Format:

waypoints:
  - x: 0.0
    y: 0.0
    yaw: 0.0
  - x: 5.0
    y: 0.0
    yaw: 0.0
  - x: 10.0
    y: 2.0
    yaw: 0.3

10. Localization and Mapping

SLAM Method Evaluation

During development, we evaluated four LiDAR-based SLAM frameworks to determine the best fit for the Carver platform. Each method was tested with the Livox MID360 LiDAR under real-world conditions.

Methods Evaluated:

Why MOLA?

After extensive testing, MOLA was selected for the following reasons:

  1. Superior Localization Accuracy - Achieved consistent sub-2cm accuracy in our test environment, outperforming other methods in repeated trials.

  2. Robust Map Quality - Produced clean, dense point cloud maps with minimal drift over long trajectories.

  3. Flexible Architecture - Modular pipeline design allows easy switching between ICP/GICP/NDT matching algorithms and different optimization backends.

  4. Native Livox Support - Works seamlessly with non-repetitive scanning patterns of Livox MID360 without requiring point cloud preprocessing.

  5. Separate Mapping and Localization - Clean separation between offline mapping (SLAM) and online localization modes, ideal for autonomous navigation workflows.

  6. Active Development - Well-maintained with comprehensive documentation and responsive community support.


System Overview

Two-Stage Approach:

  1. SLAM (Mapping): Use MOLA to create maps
  2. Localization (Navigation): Use ICP/GICP for real-time pose estimation → Configured in MOLA packages

Complete Documentation:
https://github.com/Whan000/MOLA-SLAM

For details on:

  • MOLA installation and setup
  • Configuration parameters
  • Mapping best practices
  • Troubleshooting
  • Advanced features

See the dedicated MOLA-SLAM repository above.


11. Troubleshooting

System Won't Start

Check devices:

ls -l /dev/ttyACM*
lsusb | grep ODrive

#Or just go to your browser and type for odriveGUI

Test individual components:

ros2 run micro_ros_agent micro_ros_agent serial --dev /dev/ttyACM0
ros2 run carver_odrive carver_odrive.py

Fix permissions:

sudo chmod 666 /dev/ttyACM*

Localization Failure

Verify map loaded:

#Check on RViZ2 or MOLA-Viz

Check LiDAR data:

ros2 topic echo /livox/lidar -n 1

Motors Not Responding

Check ODrive:

# In odrivetool
odrv0.axis0.error
odrv0.clear_errors()

Run calibration:

odrv0.axis0.requested_state = AXIS_STATE_FULL_CALIBRATION_SEQUENCE

Check control mode:

odrv0.axis0.controller.config.control_mode = 2  # Velocity
odrv0.save_configuration()

Controller Not Following Path

Check pose:

ros2 topic echo /state_estimator/pose

Adjust gains:

ros2 param set /stanley_controller k_heading 0.5

LiDAR No Data

Network (Ethernet):

ping 192.168.1.10
sudo ifconfig eth0 192.168.1.50 netmask 255.255.255.0

Start driver:

ros2 launch livox_ros_driver2 rviz_MID360_launch.py

High CPU Usage

Reduce load:

#Config in MOLA pipelines aim for bigger voxels size

Disable visualization:

# Comment out RViz in launch file

Build Errors

Update dependencies:

rosdep update
rosdep install --from-paths src --ignore-src -r -y

Clean build:

cd ~/carver_ws
rm -rf build/ install/ log/
colcon build

12. References

Project Repositories

CARVER-GEN3 Main Repository:

MOLA SLAM Configuration (Complete Guide):

Livox MID360 Guidelines:

Official Documentation

ROS2:

MOLA (Upstream):

Hardware:

Contributors

This project exists thanks to all the people who contributed.

Academic Papers

  • MOLA: "A Modular Optimization Framework for Localization and Mapping" (RSS 2019)
  • Stanley Controller: "Stanley: The Robot that Won the DARPA Grand Challenge"
  • Pure Pursuit Controller: "Implementation of the Pure Pursuit Path Tracking Algorithm"
  • Combined Controller: "Combined Path Following Controller for Autonomous Vehicles"

About

No description, website, or topics provided.

Resources

License

Stars

Watchers

Forks

Releases

No releases published

Packages





Contributors
