Add Philips Hue Essentials E27 8W 806lm

[Triserden]

Device information

Philips Hue Essentials E27 806lm

Webshop (123led.nl) link:
Philips Hue Smart lamp E27 | Peer A60 | Mat | White & Color Ambiance | Zigbee | 8W (60W) | 3 stuks

Home Assistant Device information

LCA016
by Signify Netherlands B.V.
Firmware: 0x01000d08
Zigbee: 00:17:88:01:0F:E4:85:8F

Checklist

• I have created a single PR per device. When you have multiple submissions please create separate PR's.
• For lights - I have only included the gzipped files (*.gz), not the raw CSV files.
• For lights - I have provided a CSV file per supported color mode. Look that up in Developer Tools -> States

Additional info

I unfortunately could not get a longer measurement in due to my HA instance occasionally giving 500 errors and crashing the whole measurement. If this is a problem, please let me know.

[github-actions]

JSON Schema validation failed for profile_library/signify/LCA016/model.json

---

Validator: minimum
Validator value:

0.05

Message:

'0 is less than the minimum of 0.05'

Instance:

0

[Triserden]

JSON Schema validation failed for profile_library/signify/LCA016/model.json

Validator: minimum Validator value:

0.05

Message:

'0 is less than the minimum of 0.05'

Instance:

0

Well that's not great. Probably better if I used an actual resistive load instead of another bulb for the dummy load...

I'll buy one and retry, but it might take a while. I'll look into the 500 errors in the meantime.

[github-actions]

Thank you for submitting light measurements!

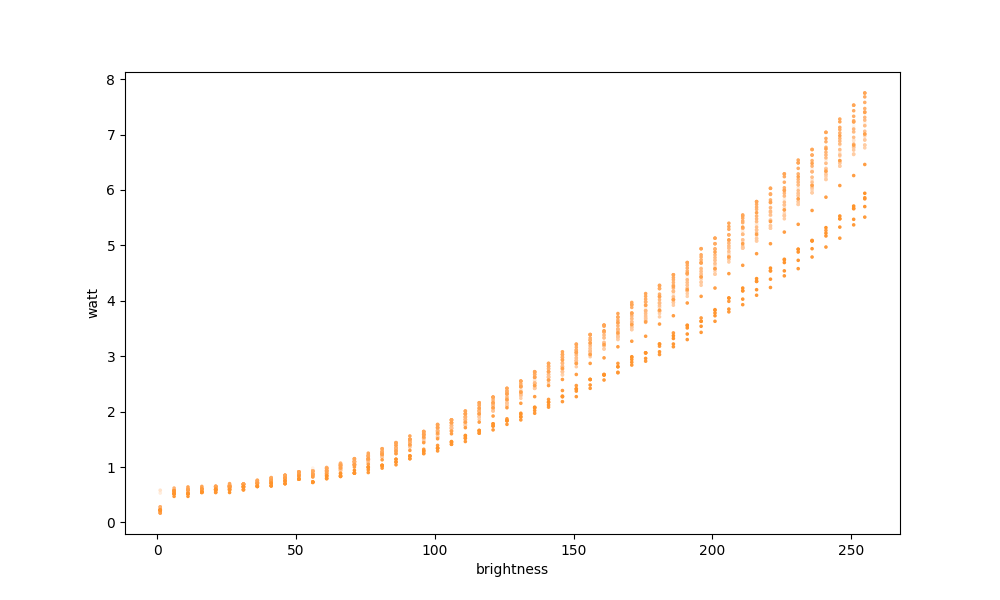

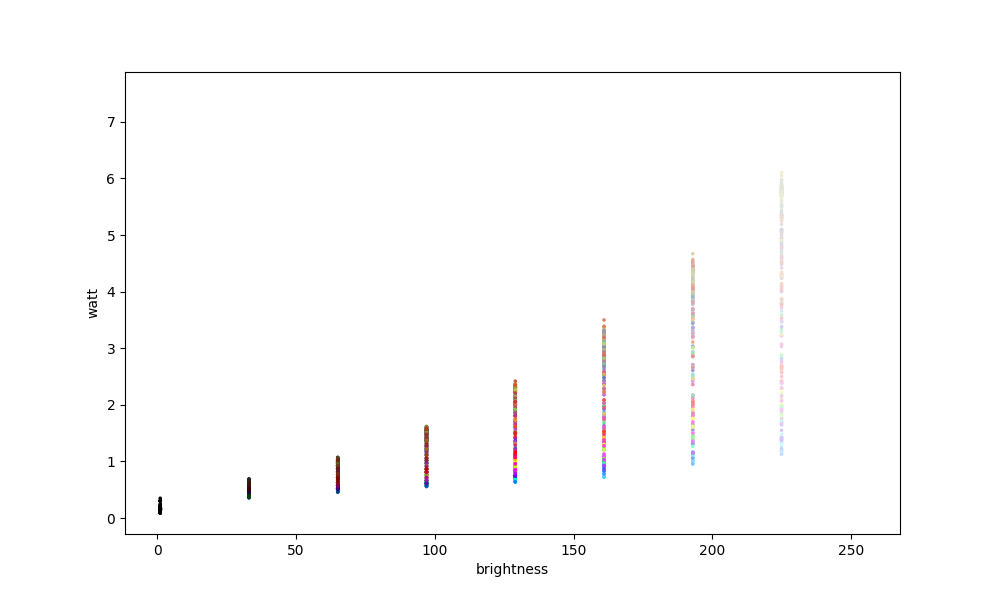

Here are some visualizations for the CSV files.

[bramstroker]

Thank you please also see this doc for tips: https://docs.powercalc.nl/contributing/measure/standby_troubleshooting/

[bramstroker]

Btw the measurements itself look nice and consistent, so it's purely the standby power which is below the threshold to be picked up by shelly gen4, these devices are know to have a higher minimum value than the shelly gen3 devices which were recommended.
So best thing to do is use a resistent load as dummy load and try again.

[Triserden]

Thanks! Is there a way to only measure standby power, or do you recommend measuring the whole range again?

[bramstroker]

Thanks! Is there a way to only measure standby power, or do you recommend measuring the whole range again?

You can just use average mode and measure for 60-120 seconds for example. That's an option you can choose in the first step of the measure tool wizard.
And fill in the standby_power manually in model.json
