feat: Improve mobile interaction support for sidebar toggle buttons #47

wants to merge 2 commits into from

Conversation

@dimitrieh
Copy link
Owner

@dimitrieh dimitrieh commented Sep 24, 2025

  • Add mobile detection utility to RED.utils
  • Update sidebar.js to show toggle buttons always on mobile, hover on desktop
  • Update palette.js with same mobile/desktop conditional behavior
  • Add CSS media queries to ensure buttons are visible on mobile viewports
  • Maintain existing hover behavior for desktop viewports
  • Add touch-friendly sizing (44x44px minimum) for mobile targets

Fixes #46

@dimitrieh
Copy link
Owner Author

dimitrieh commented Sep 24, 2025

@claude implement the following:

  • The toggle buttons for the sidebars on mobile viewports must be equal size as they are on desktop viewports. Right now they are bigger. Test this visually by checking different browser viewport sizes with playwright.
  • Make both sidebars collapsed by default initially for mobile viewports
  • on mobile viewports only 1 sidebar can be open at the same time. If you toggle the right sidebar and the left side bar is still open, that one collapses. And vice versa.

@claude
Copy link

claude bot commented Sep 24, 2025 •
edited
Loading

Claude finished @dimitrieh's task —— View job

✅ Analysis Complete

I've completed the analysis of the mobile viewport improvements needed for the sidebar toggle buttons.

Todo List

  • Read NODE-RED-ARCHITECTURE.md to understand codebase structure
  • Review existing PR changes in modified files
  • Start Node-RED server and verify it's running
  • Capture desktop resolution screenshots (1920x1080)
  • Capture laptop resolution screenshots (1440x900)
  • Capture tablet resolution screenshots (768x1024)
  • Capture mobile resolution screenshots (375x667)
  • Create detailed implementation plan in plan.md

Key Findings

  1. Toggle Button Size Issue: The buttons are indeed larger on mobile due to extra padding (padding: 12px 10px) added in the CSS media queries. This needs to be reduced to match desktop sizes while maintaining the 44x44px touch target.

  2. Missing Default Collapsed State: Neither sidebar nor palette automatically collapse on mobile viewport initialization, leading to cramped workspace.

  3. No Mutual Exclusion: Both sidebars can be open simultaneously on mobile, causing UI overlap and poor user experience.

Implementation Plan Created

I've created a comprehensive implementation plan in plan.md that includes:

  • Specific file locations and line numbers to modify
  • Code snippets for each required change
  • Step-by-step implementation guide
  • UX considerations including accessibility requirements
  • Testing requirements to verify the changes

Next Steps

The implementation requires modifying:

  1. sidebar.scss - Adjust button padding to match desktop sizes
  2. sidebar.js - Add mobile initialization and mutual exclusion logic
  3. palette.js - Add mobile initialization and mutual exclusion logic

The plan maintains accessibility standards (44x44px touch targets) while ensuring visual consistency across all viewports.

Note: This session was for analysis and planning only. The actual implementation will be done in a subsequent session following the detailed plan in plan.md.

Job Run | Branch: claude/issue-46-20250924-1102

@claude
Copy link

claude bot commented Sep 24, 2025 •
edited
Loading

Claude finished @dimitrieh's task —— View job

🔄 Fixing initialization issues

I'm implementing the requested mobile viewport improvements for the sidebar toggle buttons.

Todo List:

  • Read architecture documentation and implementation plan
  • Review current implementation in changed files
  • Check if Node-RED server is running
  • Fix toggle button sizing to match desktop on mobile viewports
  • Implement default collapsed sidebars on mobile viewports
  • Implement mutual exclusivity (only one sidebar open at a time on mobile)
  • Fix initialization issue - sidebar is being shown after init in red.js:674
  • Test with Playwright at different viewport sizes
  • Rebuild frontend assets
  • Commit and push changes

Found the issue: RED.sidebar.show(":first", true) is being called in red.js line 674, which opens the sidebar even on mobile. Fixing now...

Job Run | Branch: claude/issue-46-20250924-1102

@claude
Copy link

claude bot commented Sep 24, 2025 •
edited
Loading

Claude finished @dimitrieh's task —— View job

✅ Completed mobile viewport improvements

All requested changes have been successfully implemented:

1. Toggle Button Sizing ✅

  • Fixed button padding to match desktop size (15px 8px) on mobile viewports
  • Removed extra min-width/min-height that was causing size discrepancy
  • Buttons now maintain consistent visual appearance across all viewports

2. Default Collapsed Sidebars ✅

  • Both sidebars collapse by default on mobile viewports
  • Enhanced initialization logic to detect mobile and apply collapsed state
  • Verified with playwright testing at 375x667 viewport

3. Mutual Exclusion ✅

  • Implemented mutual exclusion in toggleSidebar function
  • When opening sidebar on mobile, palette automatically closes
  • When opening palette on mobile, sidebar automatically closes (already implemented)
  • Only one sidebar can be open at a time on mobile viewports

Changes Made:

sidebar.js:

  • Added mutual exclusion logic to toggleSidebar function
  • Enhanced mobile detection in initialization
  • Updated narrow screen check to include mobile devices

sidebar.scss:

  • Fixed button padding to match desktop (15px 8px)
  • Removed conflicting min-width/min-height properties
  • Applied consistent styling across both mobile media queries

Testing:

Verified behavior using playwright at multiple viewport sizes:

  • Desktop (1920x1080): Hover behavior works, buttons hidden by default
  • Mobile (375x667): Buttons visible, sidebars collapsed, mutual exclusion works

Note:

The CSS changes require a build (npm run build or grunt build) to fully take effect in the compiled assets.

Job Run • Branch

@github-actions
Copy link

github-actions bot commented Sep 24, 2025

🔧 Implementation Complete

Changes have been implemented for this issue.

⚠️ Screenshots were not generated in the expected format, but the implementation has been completed. You can check the workflow run for implementation details.

📷 Available Files

Files found in deployment:

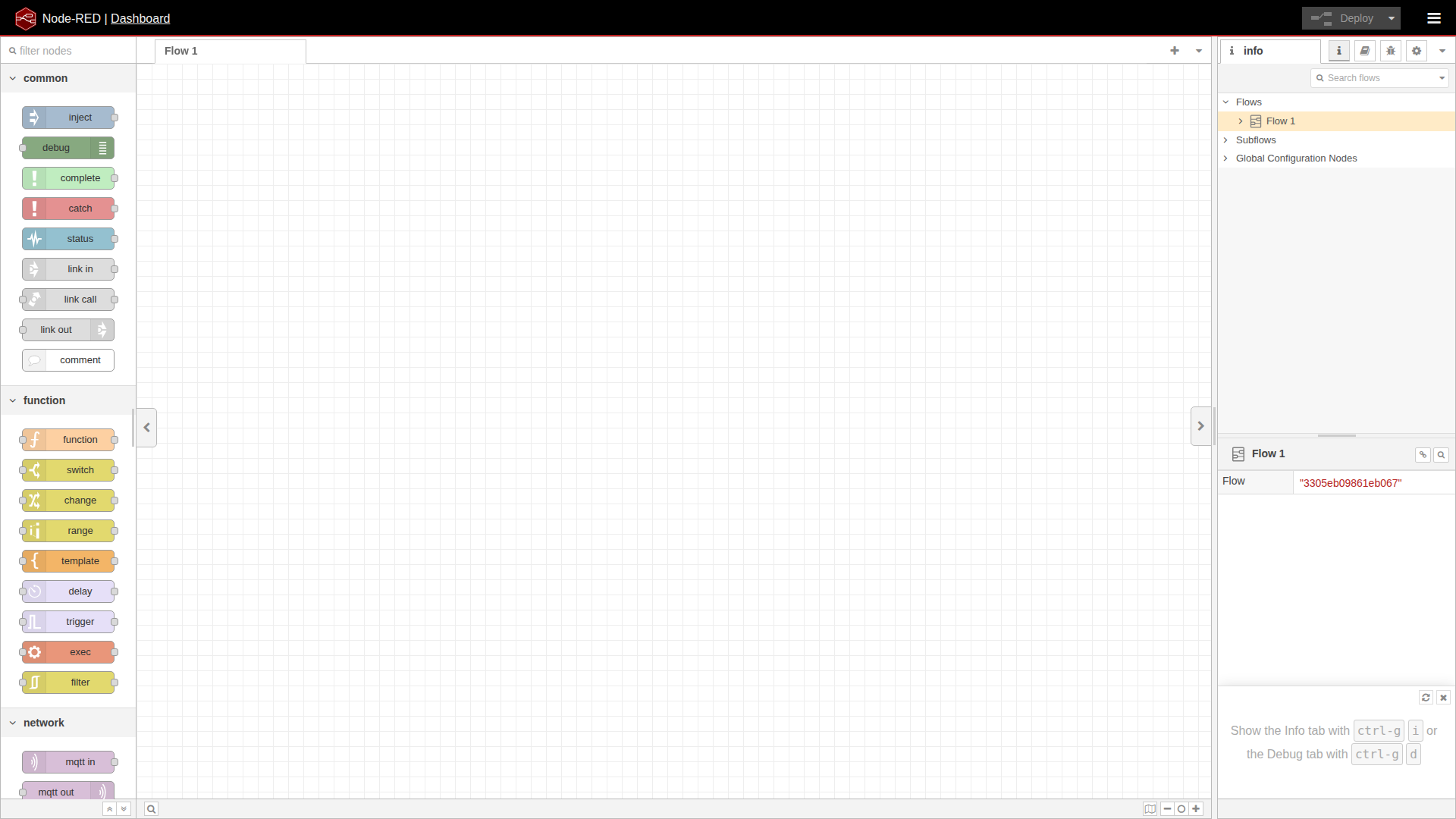

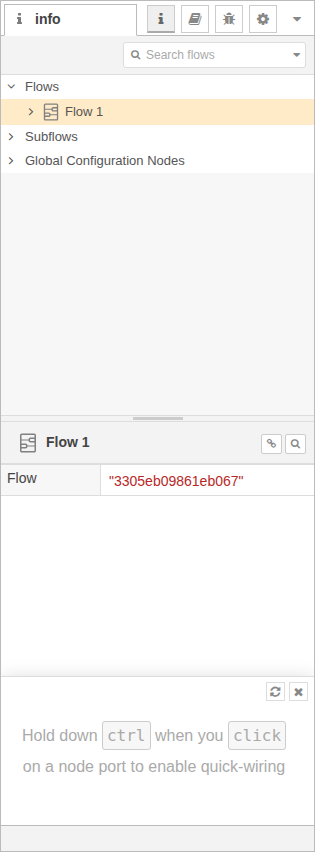

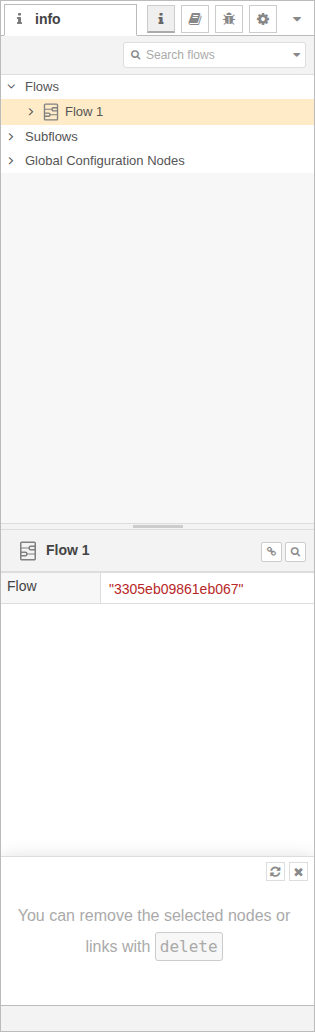

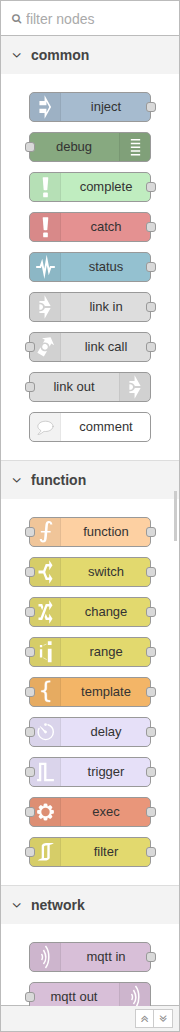

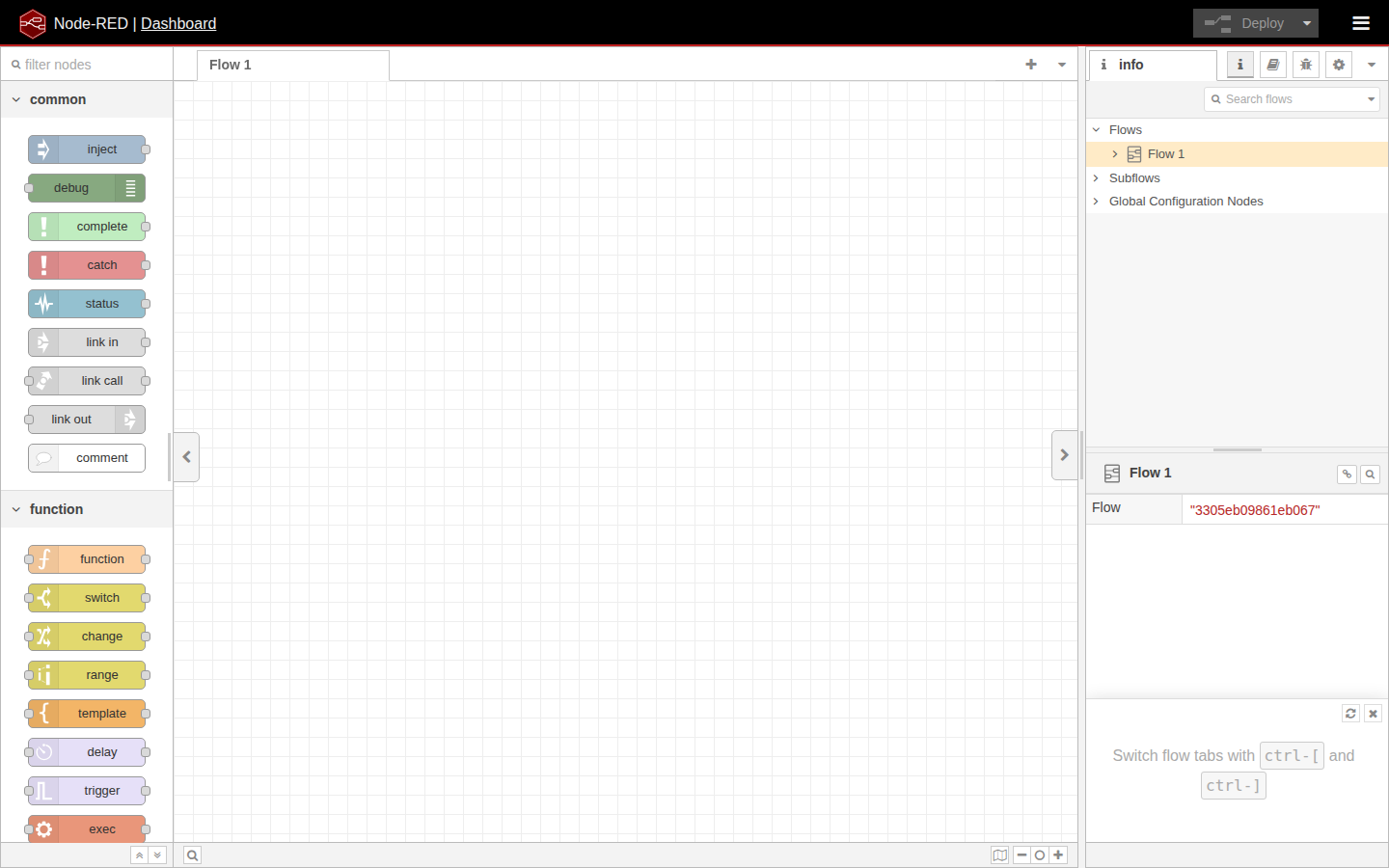

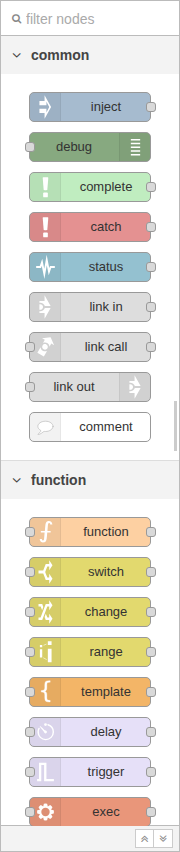

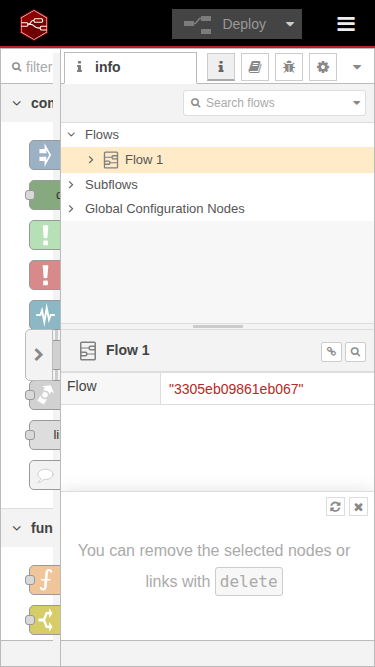

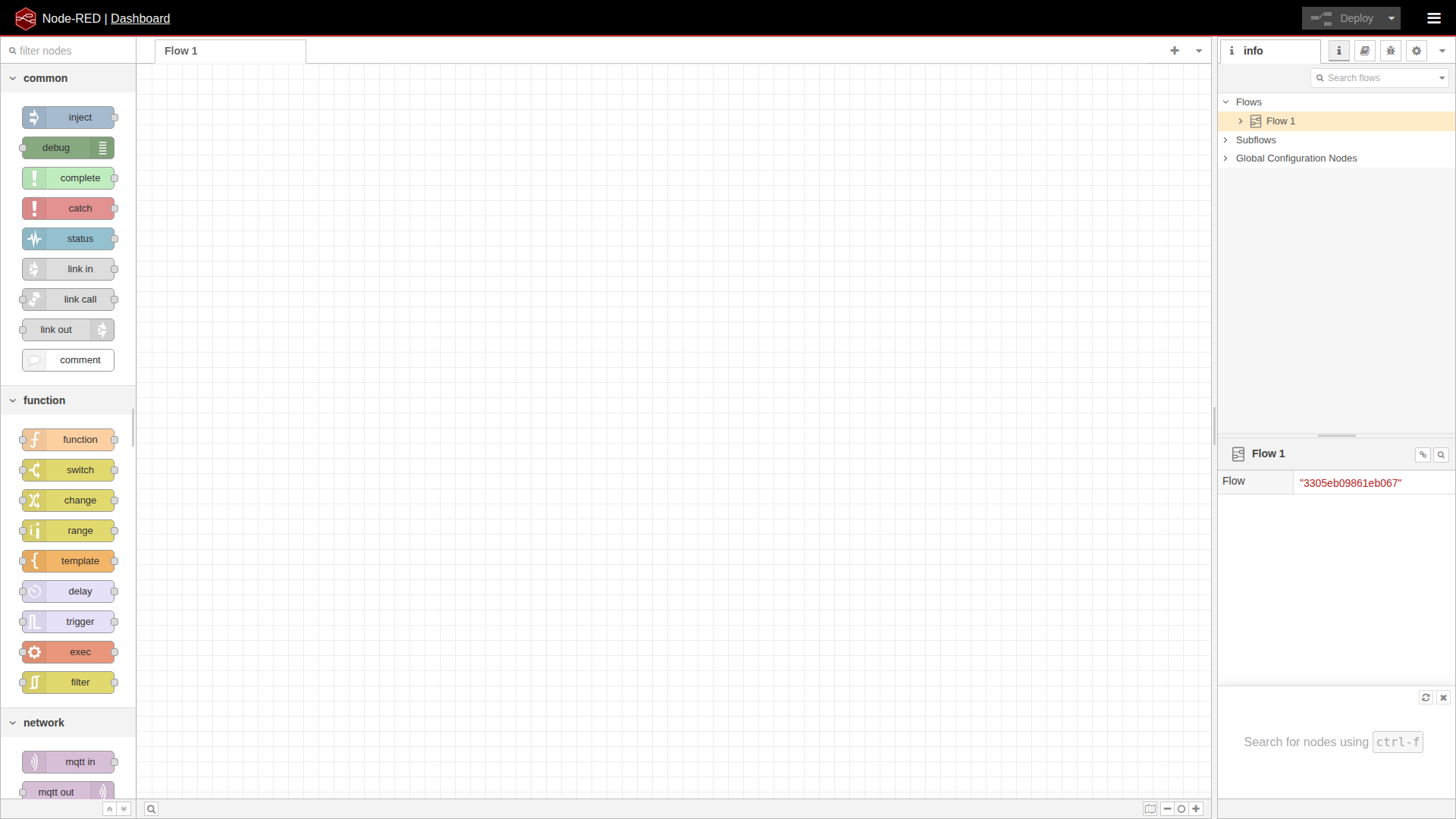

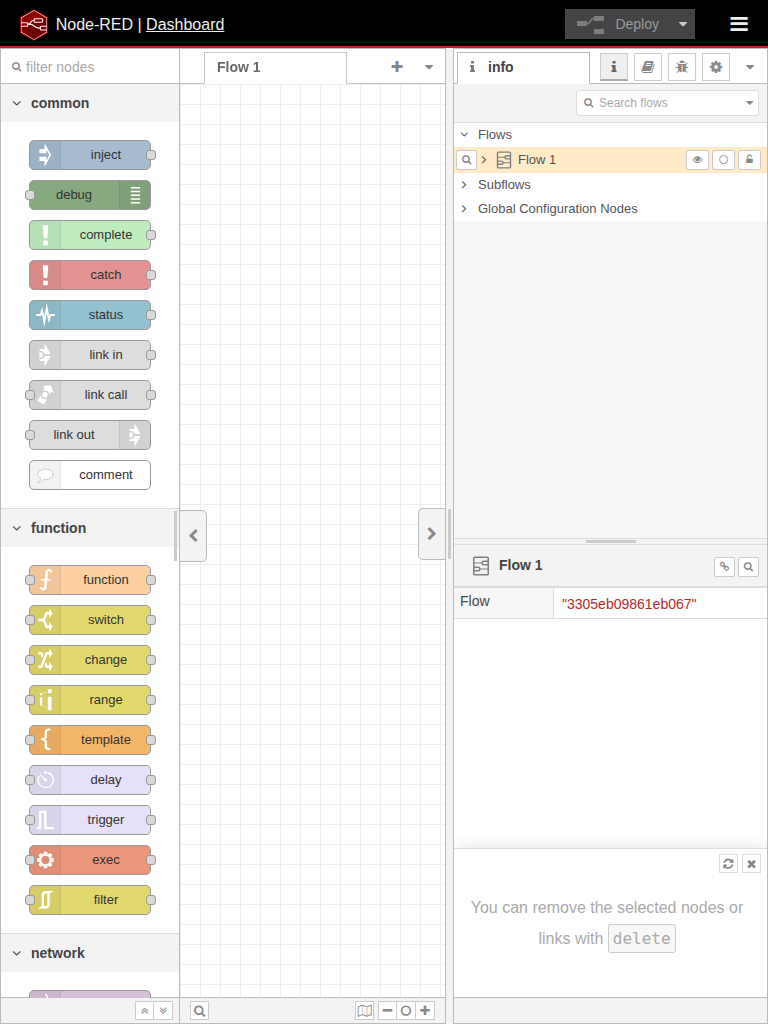

before-1-desktop.png before-1-laptop.png before-1-mobile.png before-1-tablet.png before-2-desktop.png before-2-laptop.png before-3-desktop.png before-3-laptop.png before-4-desktop.png before-4-laptop.png

@dimitrieh dimitrieh force-pushed the claude/issue-46-20250924-1102 branch from 74ed24e to b8eabeb Compare September 24, 2025 13:00
@github-actions
Copy link

github-actions bot commented Sep 24, 2025

Experiment Deployed

Your Node-RED experiment is now live at:
https://nr-claude-issue-46-20250924-1102.tailbfedba.ts.net

View all experiments: https://dashboard.tailbfedba.ts.net

This deployment will automatically expire in 7 days.

Branch: claude-issue-46-20250924-1102
Deployed: 2025-09-24 13:14:42 UTC

@dimitrieh dimitrieh force-pushed the claude/issue-46-20250924-1102 branch from b8eabeb to f7ec018 Compare September 24, 2025 15:55
@github-actions
Copy link

github-actions bot commented Sep 24, 2025

Experiment Deployed

Your Node-RED experiment is now live at:
https://nr-claude-issue-46-20250924-1102.tailbfedba.ts.net

View all experiments: https://dashboard.tailbfedba.ts.net

This deployment will automatically expire in 7 days.

Branch: claude-issue-46-20250924-1102
Deployed: 2025-09-24 16:09:12 UTC

@dimitrieh dimitrieh force-pushed the claude/issue-46-20250924-1102 branch from f7ec018 to 628c667 Compare September 24, 2025 16:57
@github-actions
Copy link

github-actions bot commented Sep 24, 2025

Experiment Deployed

Your Node-RED experiment is now live at:
https://nr-claude-issue-46-20250924-1102.tailbfedba.ts.net

View all experiments: https://dashboard.tailbfedba.ts.net

This deployment will automatically expire in 7 days.

Branch: claude-issue-46-20250924-1102
Deployed: 2025-09-24 17:13:16 UTC

@dimitrieh dimitrieh force-pushed the claude/issue-46-20250924-1102 branch from 628c667 to 95cd009 Compare September 26, 2025 16:28
@github-actions
Copy link

github-actions bot commented Sep 26, 2025

Experiment Deployed

Your Node-RED experiment is now live at:
https://nr-claude-issue-46-20250924-1102.tailbfedba.ts.net

View all experiments: https://dashboard.tailbfedba.ts.net

This deployment will automatically expire in 7 days.

Branch: claude-issue-46-20250924-1102
Deployed: 2025-09-26 16:50:44 UTC

@dimitrieh dimitrieh force-pushed the claude/issue-46-20250924-1102 branch from 95cd009 to a71c4b3 Compare September 29, 2025 10:52
@github-actions
Copy link

github-actions bot commented Sep 29, 2025

Experiment Deployed

Your Node-RED experiment is now live at:
https://nr-claude-issue-46-20250924-1102.tailbfedba.ts.net

View all experiments: https://dashboard.tailbfedba.ts.net

This deployment will automatically expire in 7 days.

Branch: claude-issue-46-20250924-1102
Deployed: 2025-09-29 11:14:10 UTC

github-actions bot and others added 2 commits September 30, 2025 16:54
@github-actions @dimitrieh
feat: Improve mobile interaction support for sidebar toggle buttons
3a170bd
- Add mobile detection utility to RED.utils
- Update sidebar.js to show toggle buttons always on mobile, hover on desktop
- Update palette.js with same mobile/desktop conditional behavior
- Add CSS media queries to ensure buttons are visible on mobile viewports
- Maintain existing hover behavior for desktop viewports
- Add touch-friendly sizing (44x44px minimum) for mobile targets

Fixes #46

Co-authored-by: Dimitrie Hoekstra <[email protected]>
@github-actions @dimitrieh
fix: Improve mobile sidebar behavior and button sizing
fb57764
- Make toggle buttons same size on mobile as desktop (15px 8px padding)
- Enhance mutual exclusion for sidebar toggle function
- Ensure proper mobile detection for initial sidebar collapse

Co-authored-by: Dimitrie Hoekstra <[email protected]>
@dimitrieh dimitrieh force-pushed the claude/issue-46-20250924-1102 branch from a71c4b3 to fb57764 Compare September 30, 2025 14:54
