Nonogram Advance

Nonogram game with 108 puzzles for the GBA

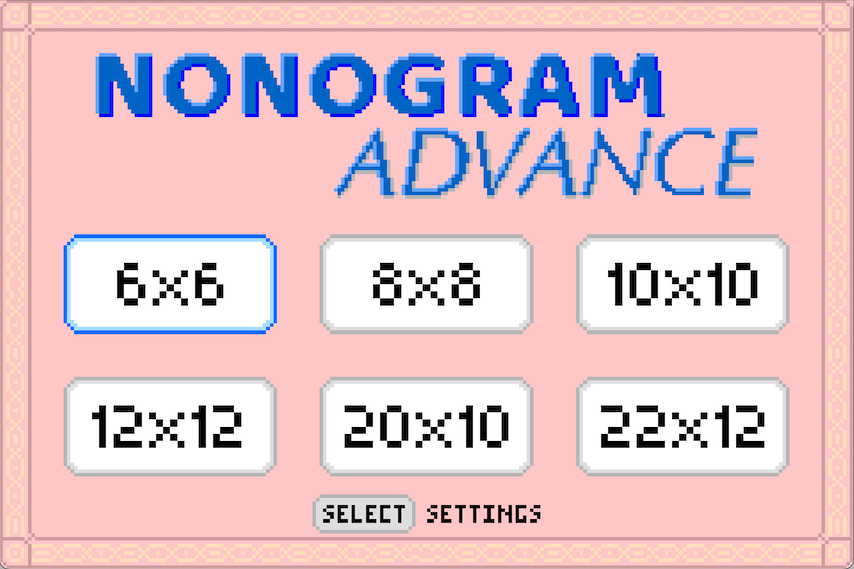

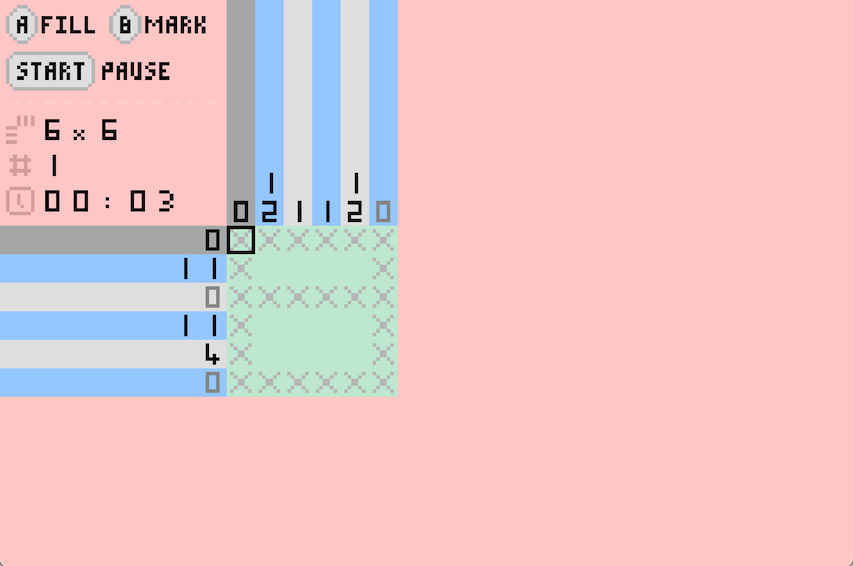

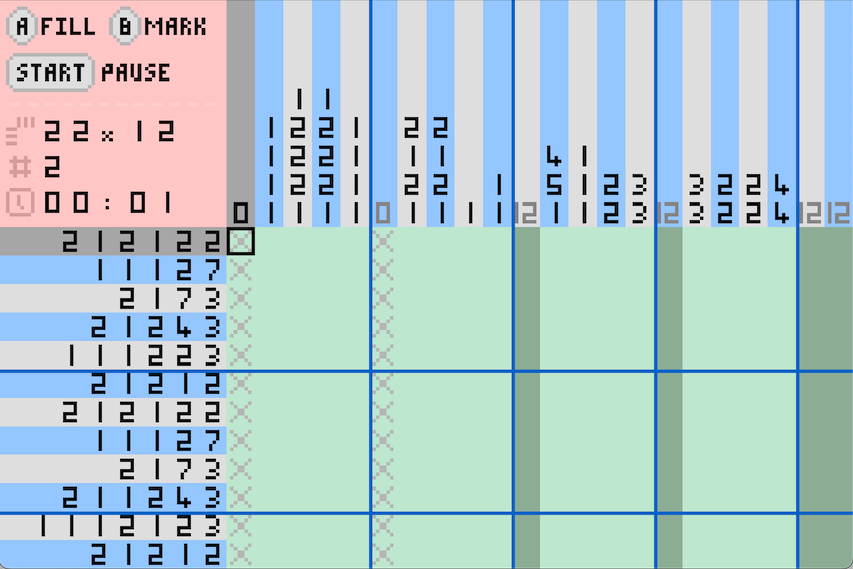

Screenshots

Player Usage

Download gba file from here and run in an emulator (mGBA recommended) or on an actual GBA

Tip

• Use nonogram_advance_v0.9.5_sram.gba on SRAM carts or things like EverDrive, or emulators
• Use nonogram_advance_v0.9.5_flash64.gba on 512KBit/64K Flash carts

Example Cartridge

https://shop.insidegadgets.com/product/gba-32mb-512kbit-flash-save-flash-cart/

Dev Usage

First follow instructions at https://agbrs.dev/book/setup/getting_started.html

Run

cargo run

(runs in mGBA)

Test

cargo test

(runs in mGBA)

Make gba file

agb-gbafix target/thumbv4t-none-eabi/release/nonogram_advance -o nonogram_advance.gba

Thanks/Tools

• agb
  • https://agbrs.dev/
  • Framework for running rust on GBA
• mGBA
  • https://mgba.io/
  • Testing
• aseprite
  • https://www.aseprite.org/
  • Creating backgrounds and sprites
• abyssbox
  • https://choptop84.github.io/abyssbox-app/
  • Creating music and sound effects
• audacity
  • https://www.audacityteam.org/
  • Editing/encoding music
• Nongram solver
  • https://cirociampaglia.altervista.org/UPLOADS/nonogram_solver.html
  • Used to verify correctness of puzzles

Lessons learned

• Macros (include_aseprite, include_wav, etc) should be in a separate module as they seriously affect IDE syntax checking/linting speed
• The sum of row clues should generally match the sum of column clues
• Small puzzles (6x6, 8x8) have their sprites doubled, but this allows for 'subpixel' detailing (see 8x8 potion)
• Don't make diagonal puzzles

Things to learn/solve

• Scene management
  • enum of scenes instead of box
  • Stack of scenes
    • Issues: vram gets used up, solution might be to create backgrounds/sprites on init and drop backgrounds when backgrounded
• Save structure
• BGM across multiple scenes
• Less repetitive sound setting checks (global sfx enabled check?)
• Unit testing without needing mgba
• How palettes are generated
• Buzzing on music
